SCPM, 1 x 16,000 BTU condenser + 2 x 8,000 BTU evaporators
Capacity (BTU/h): 16,000 BTU/h
16,000 BTU condenser + 2 × 8,000 BTU evaporators
Voltage / Frequency
230 V / 50–60 Hz
Operating Mode
Cooling / Heating
Warranty
2 years
Evaporator Material
Copper fin coating
The standard package includes:

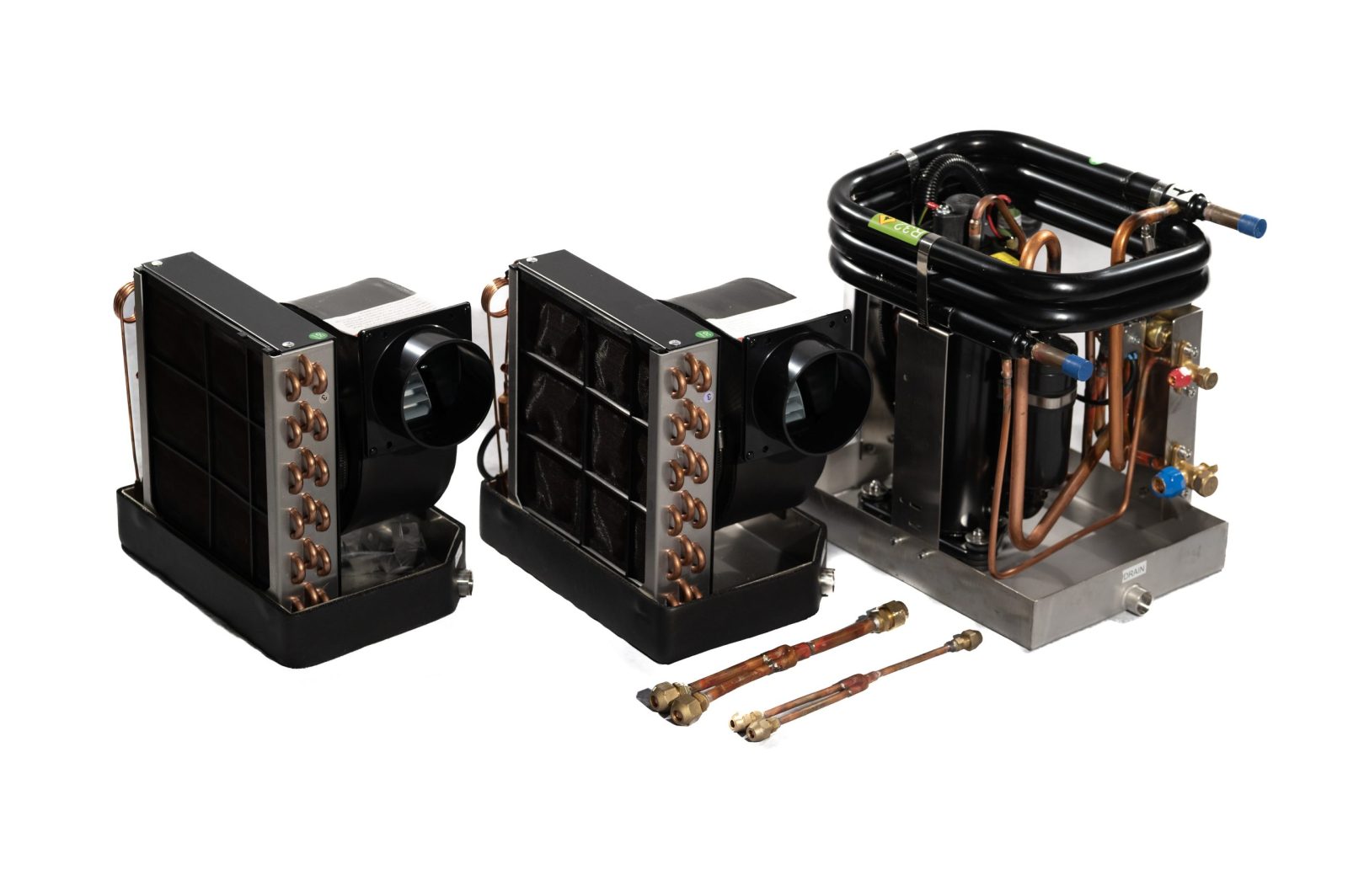

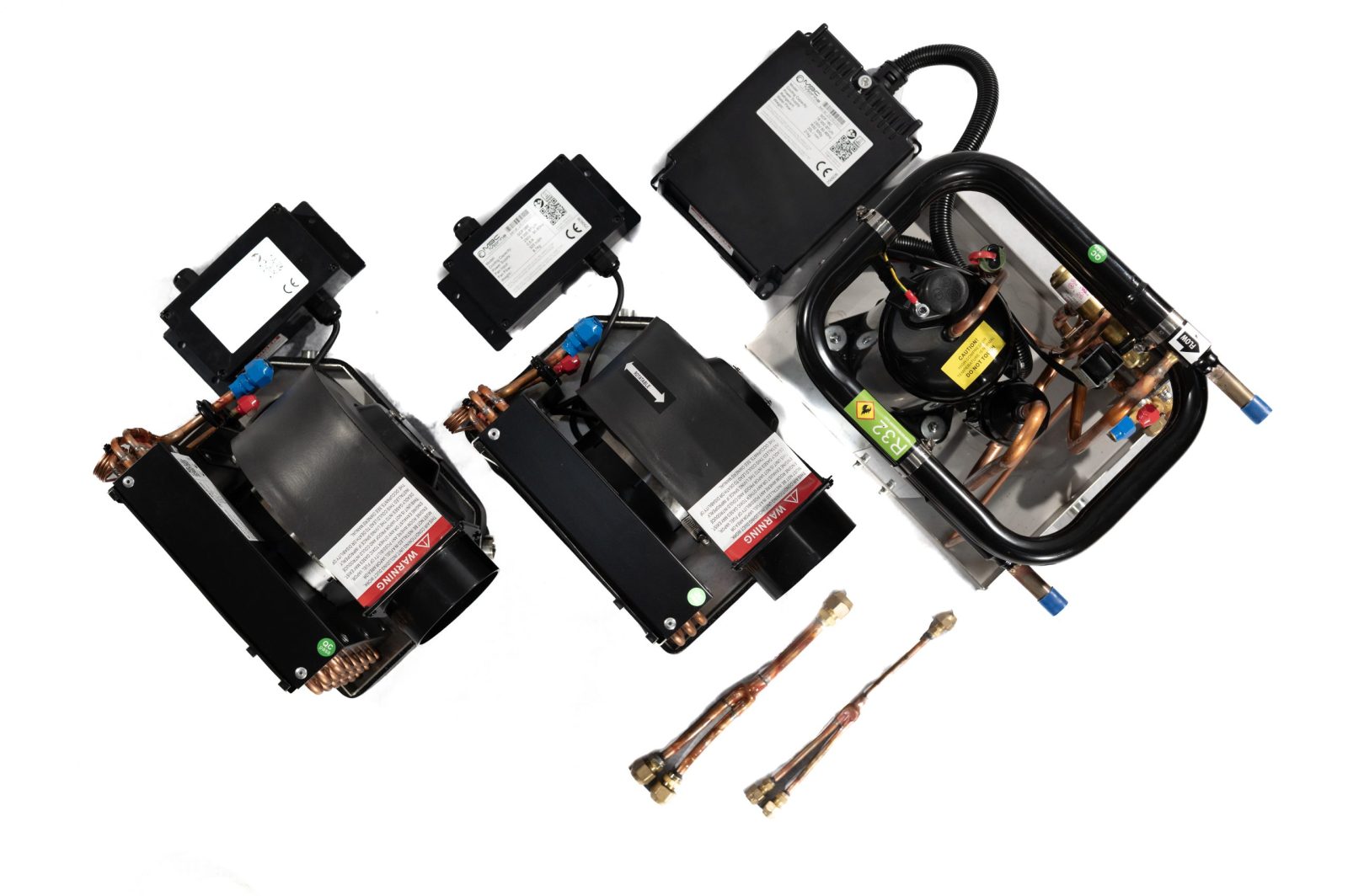

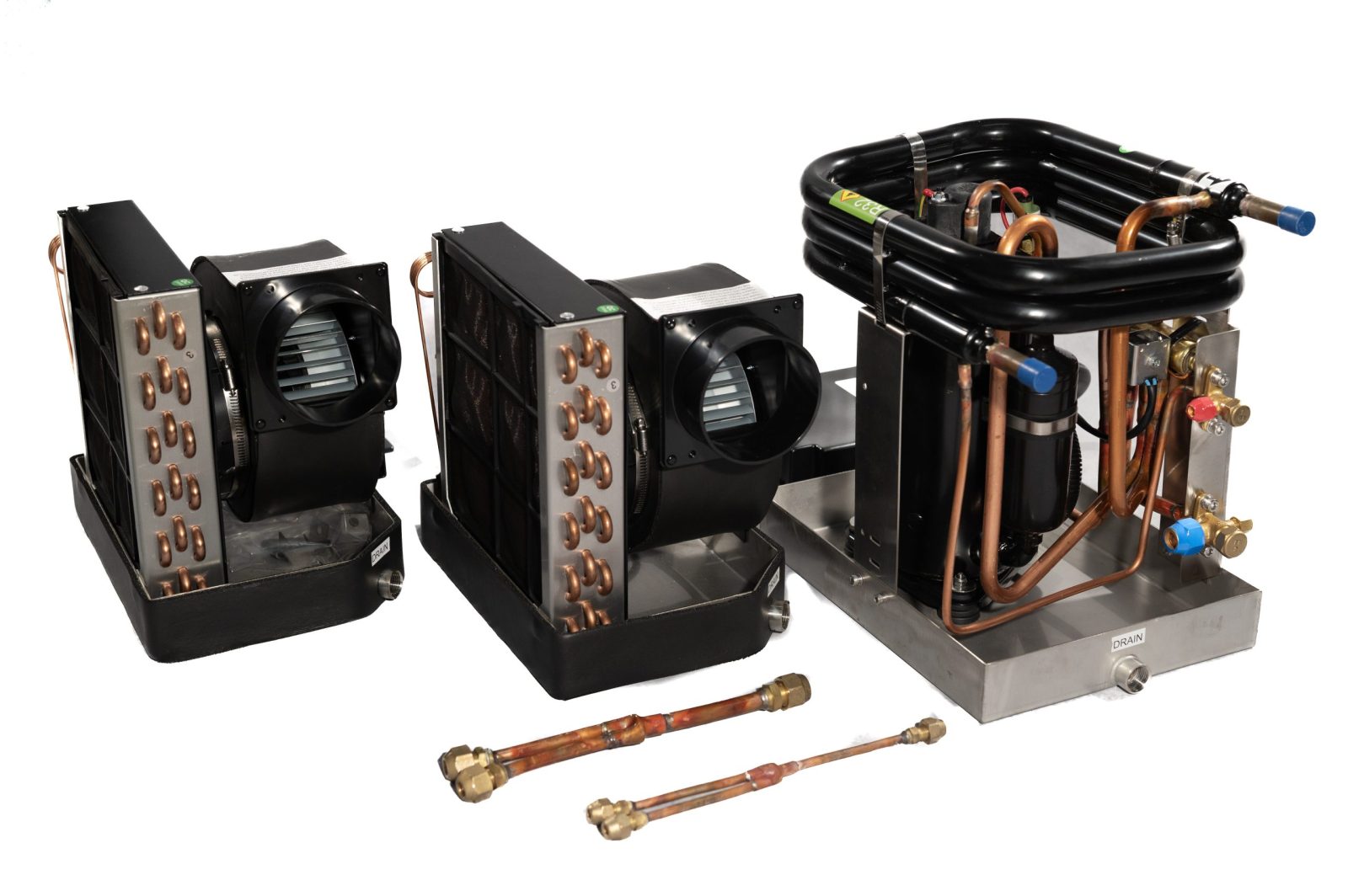

LED display, 2 Y-pipes, 5 m network cable and mounting bracket
Available options:
SMART display and Soft Starter
Unit dimensions (mm)
Height x Width x Depth
Height x Width x Depth
Condenser: 355 × 250 × 330
Evaporator: 290 × 300 × 240
Evaporator: 290 × 300 × 240
Unit weight (kg)
Condenser: 32 kg
Evaporator: 8 kg
Evaporator: 8 kg
Shipping weight (kg)
32 kg

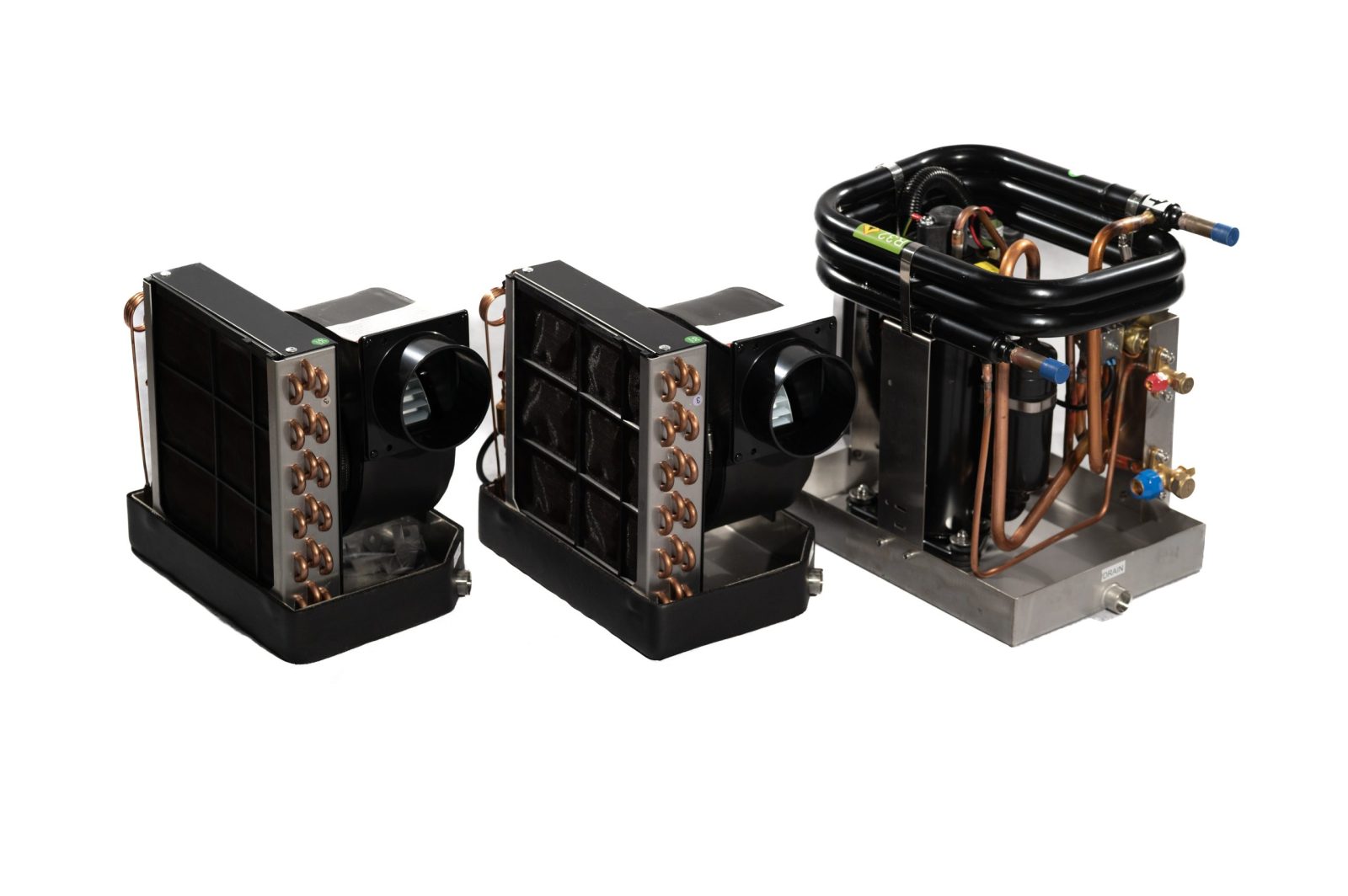

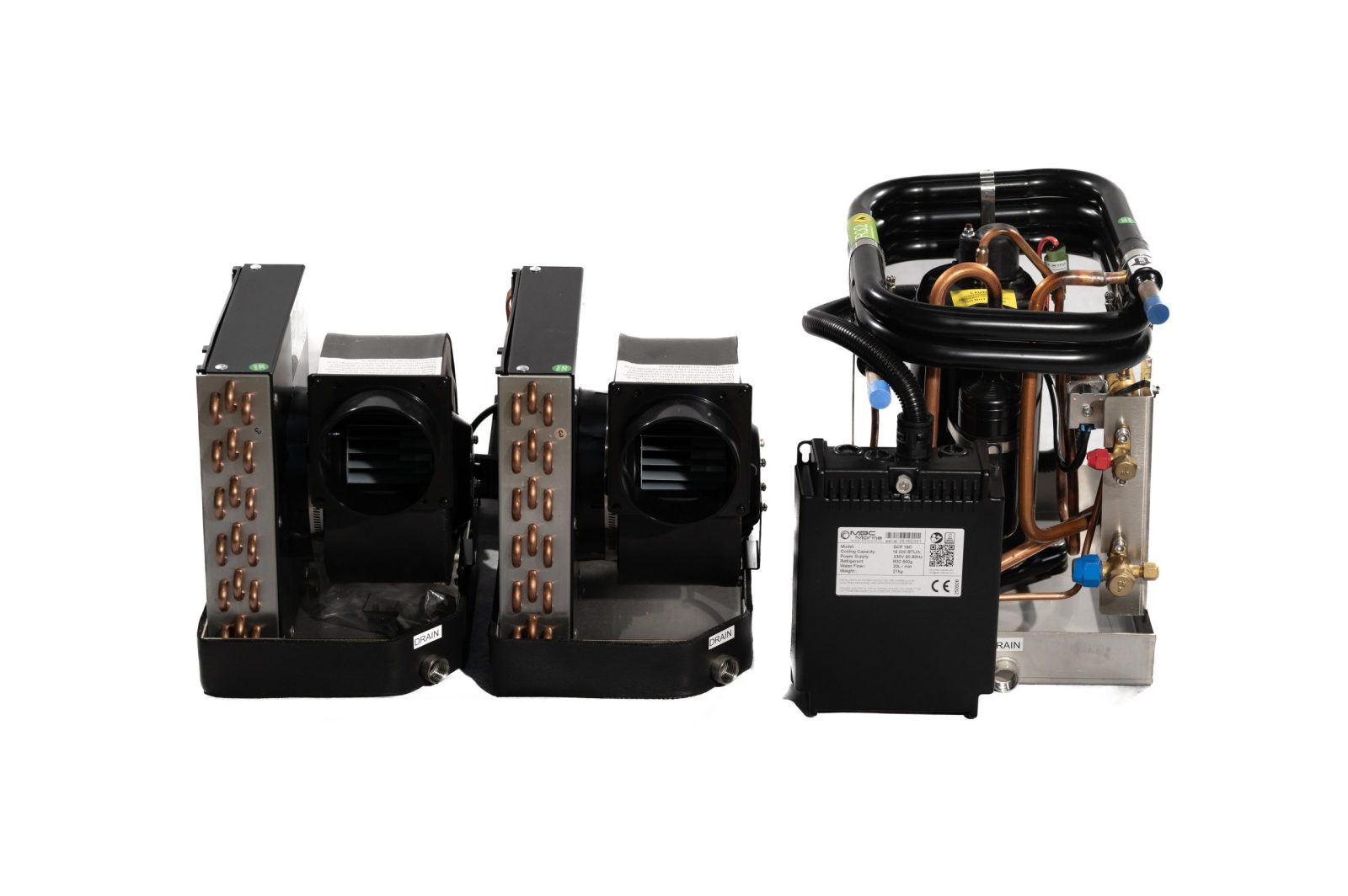

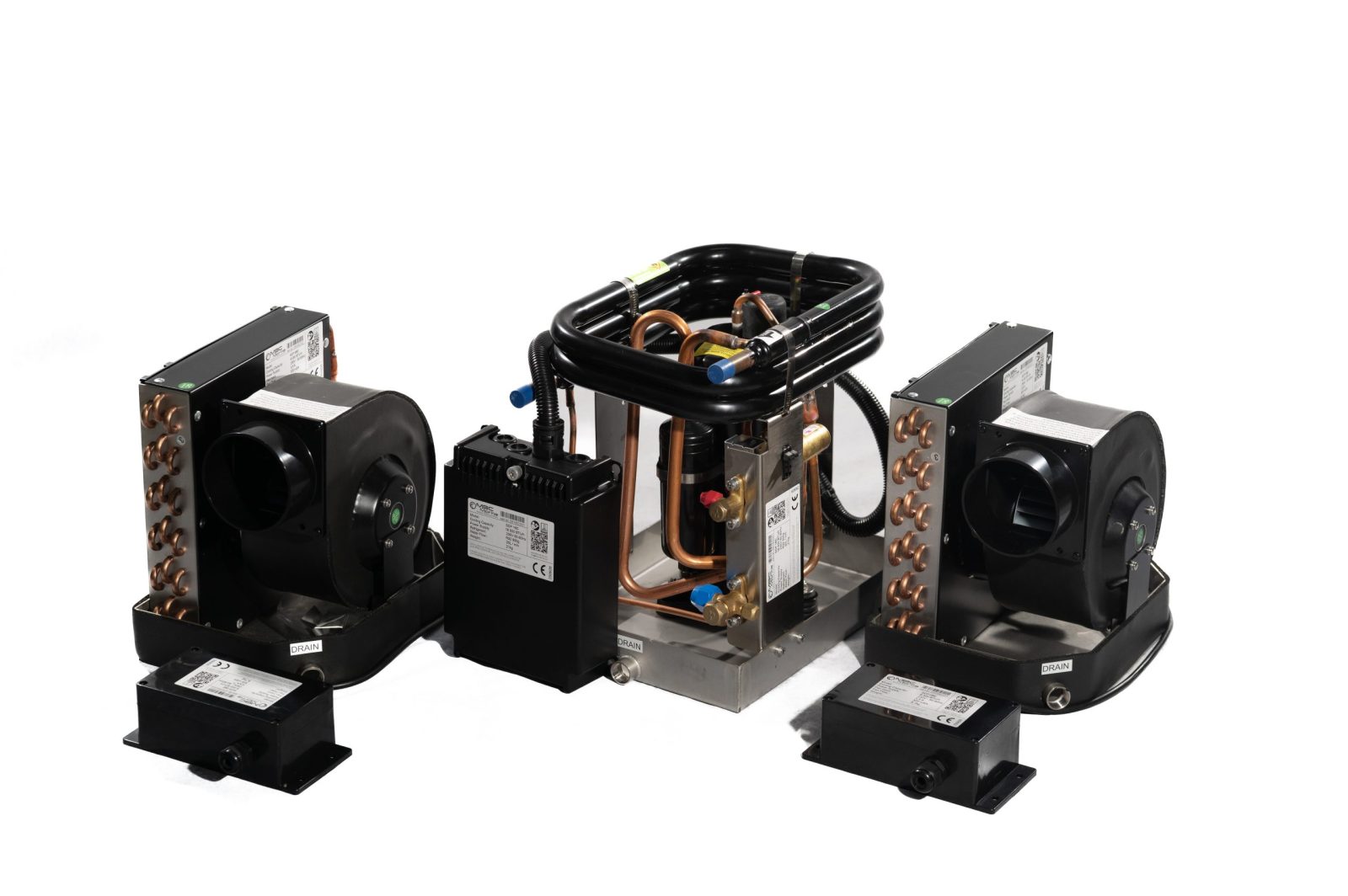

MBC Marine Multi-Split System – Marine Air Conditioner with Two Evaporators

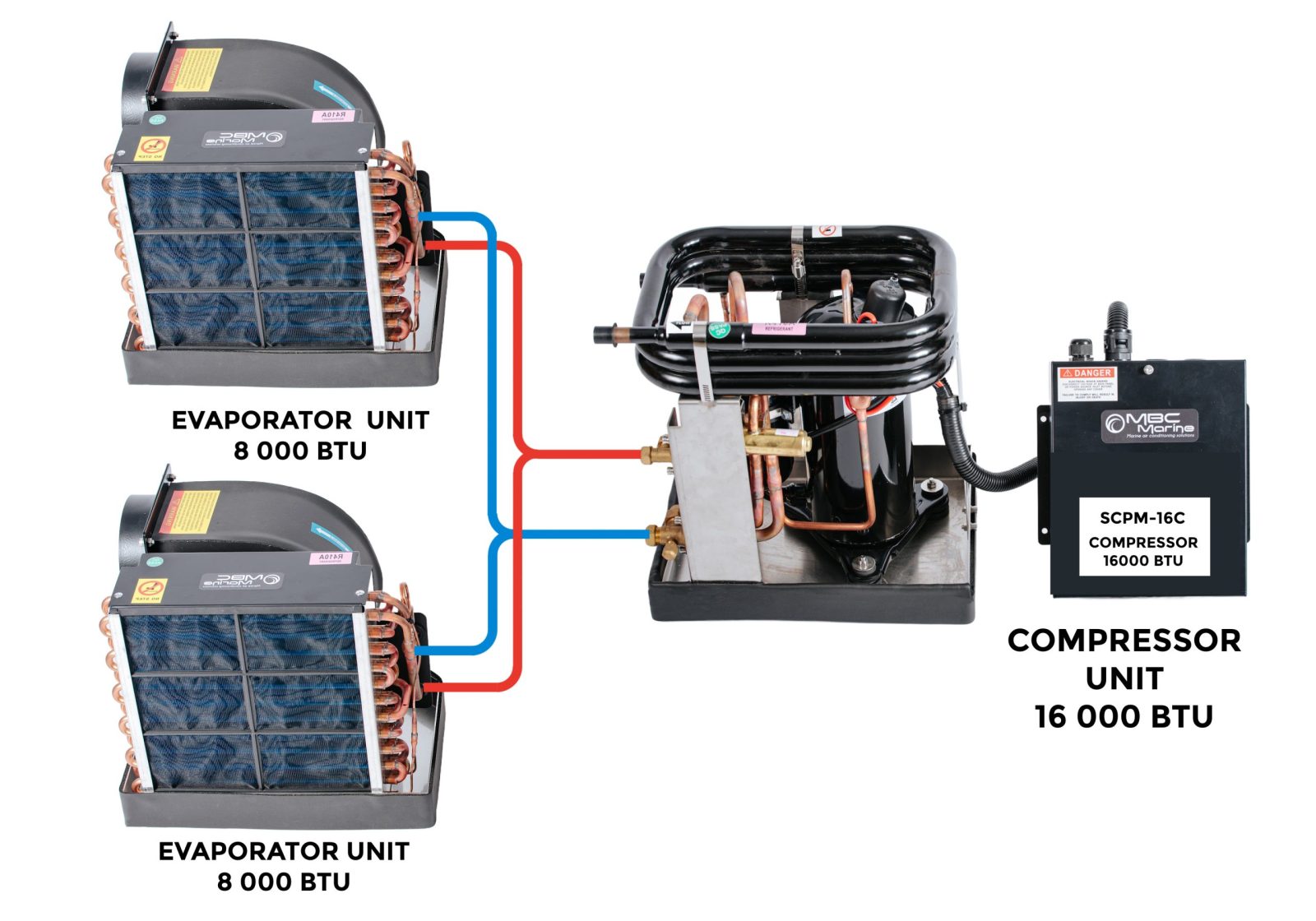

The MBC Marine Multi-Split system combines one high-performance condenser with two evaporator units to cool or heat two cabins or spaces at the same time. It is designed for vessels where independent zone control is not needed, or where long refrigerant lines could reduce performance.
A single central control display operates both evaporators simultaneously. This makes the system easy to use, supports stable performance and optimizes load management, while keeping operation straightforward for the user.
Air Conditioner Specifications
Unit Parameter
SCPM 16.000 BTU
Condenser unit specifications
Cooling Capacity
BTU/h
16000
Heating Capacity
BTU/h
17600
Power Supply
230 V / 50 -60Hz
Input power (kW)
1.15
Refrigerant
R32
Condenser unit dimensions
Height
355
Weight
330
Depth
250
Connecting pipe
Gas
12.7
Liquid
9.52
Seawater connection size
1/2"
Drain Connection Size
DN20
Net Weight (kg)
32
Evaporator unit specifications
Evaporator unit dimensions
Height
290
Width
300
Depth
240
Minimum duct size (mm)
100
Input power (W)
200
Connecting pipe
Gas
12.7
Liquid
9.52
Drain Connection Size
DN20
Net Weight (kg)
8
