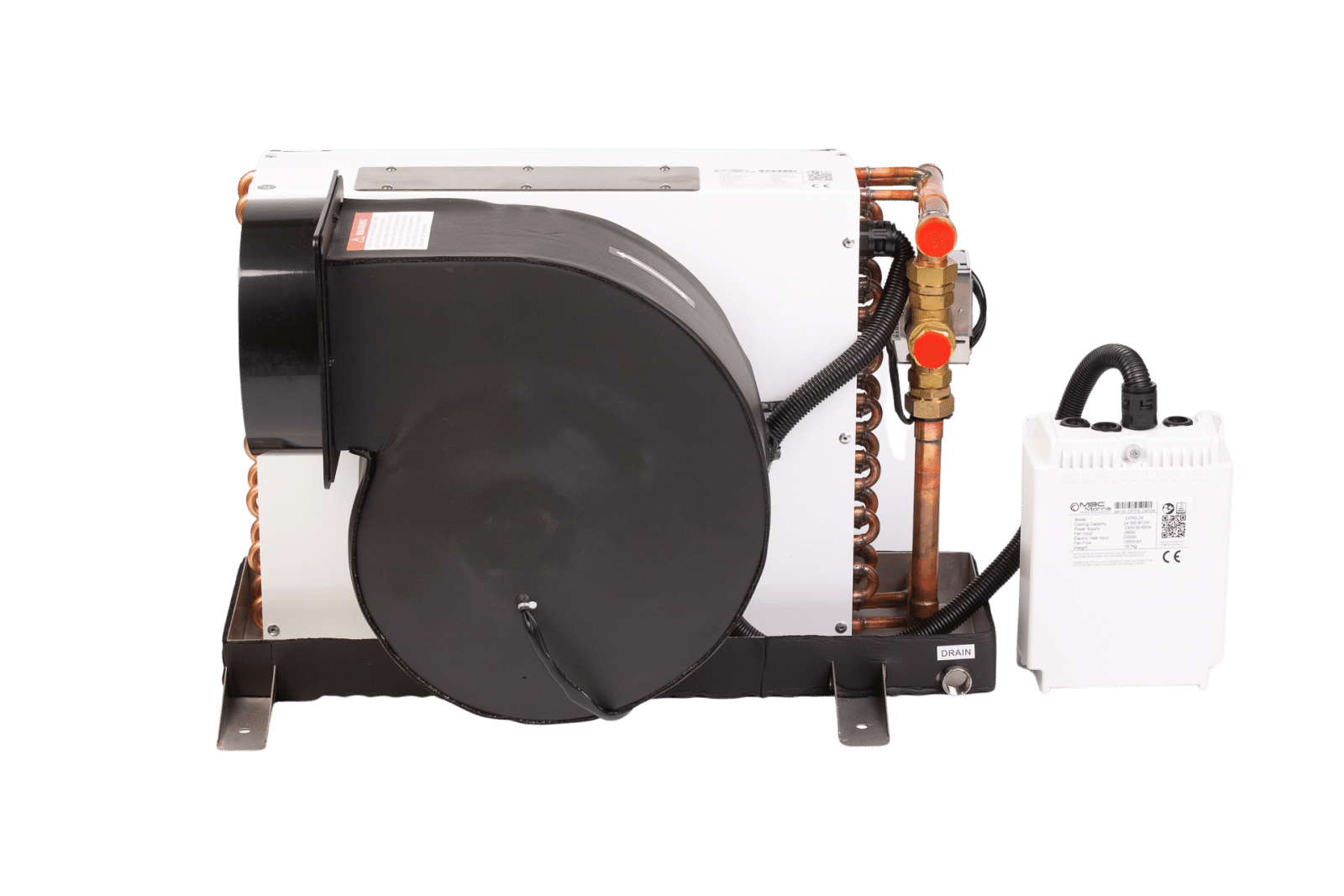

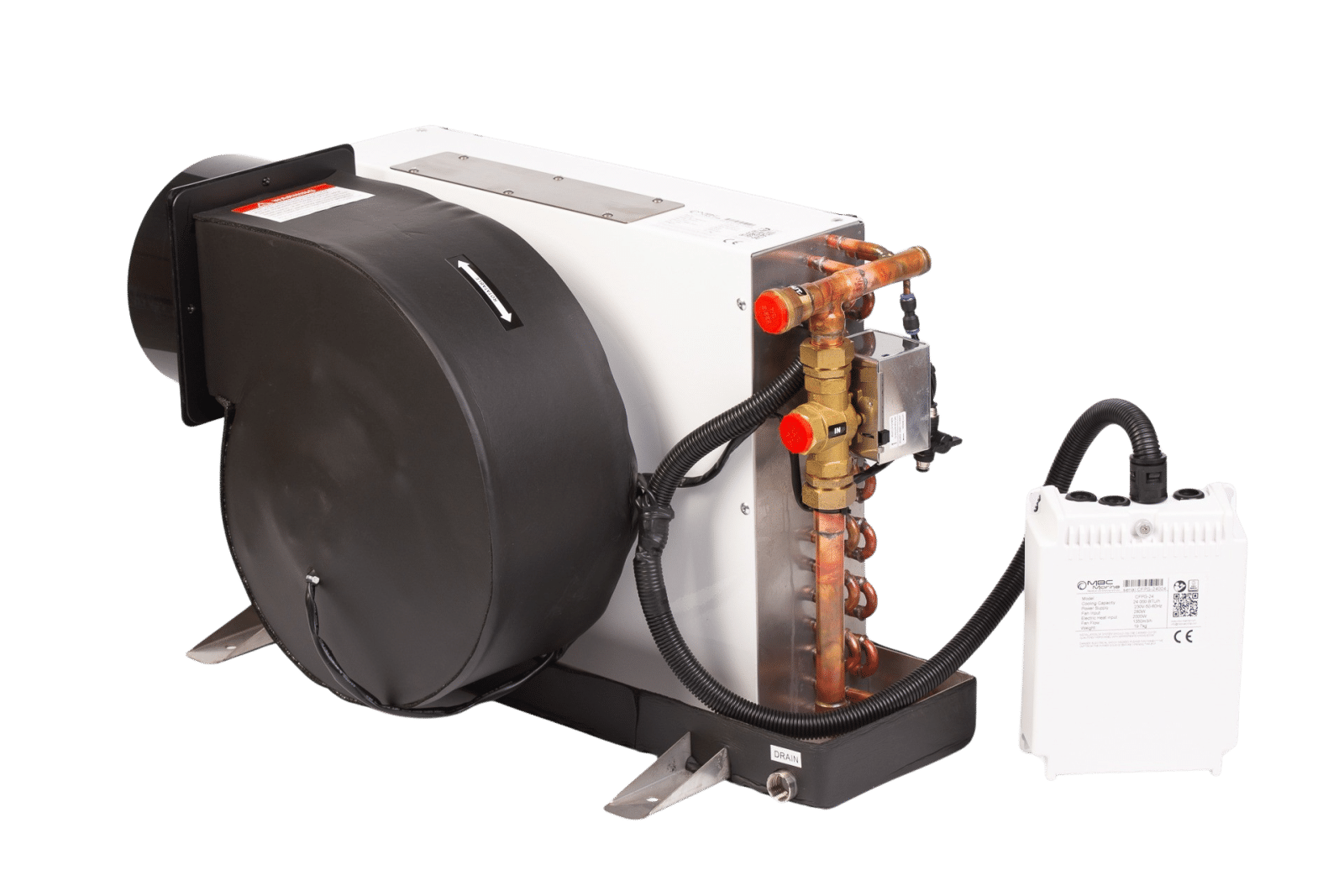

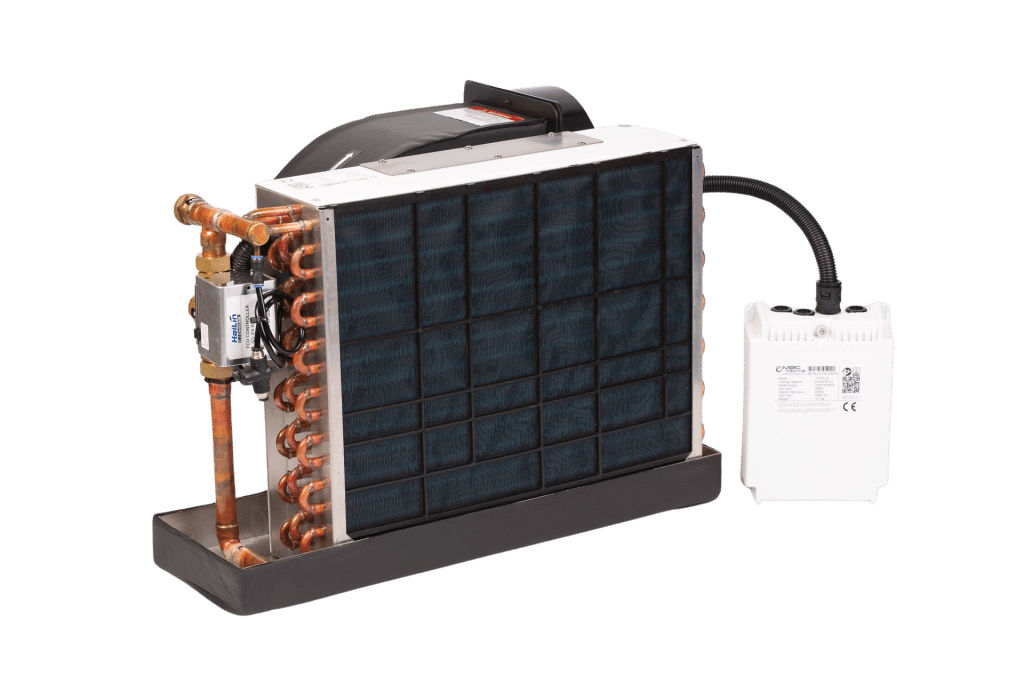

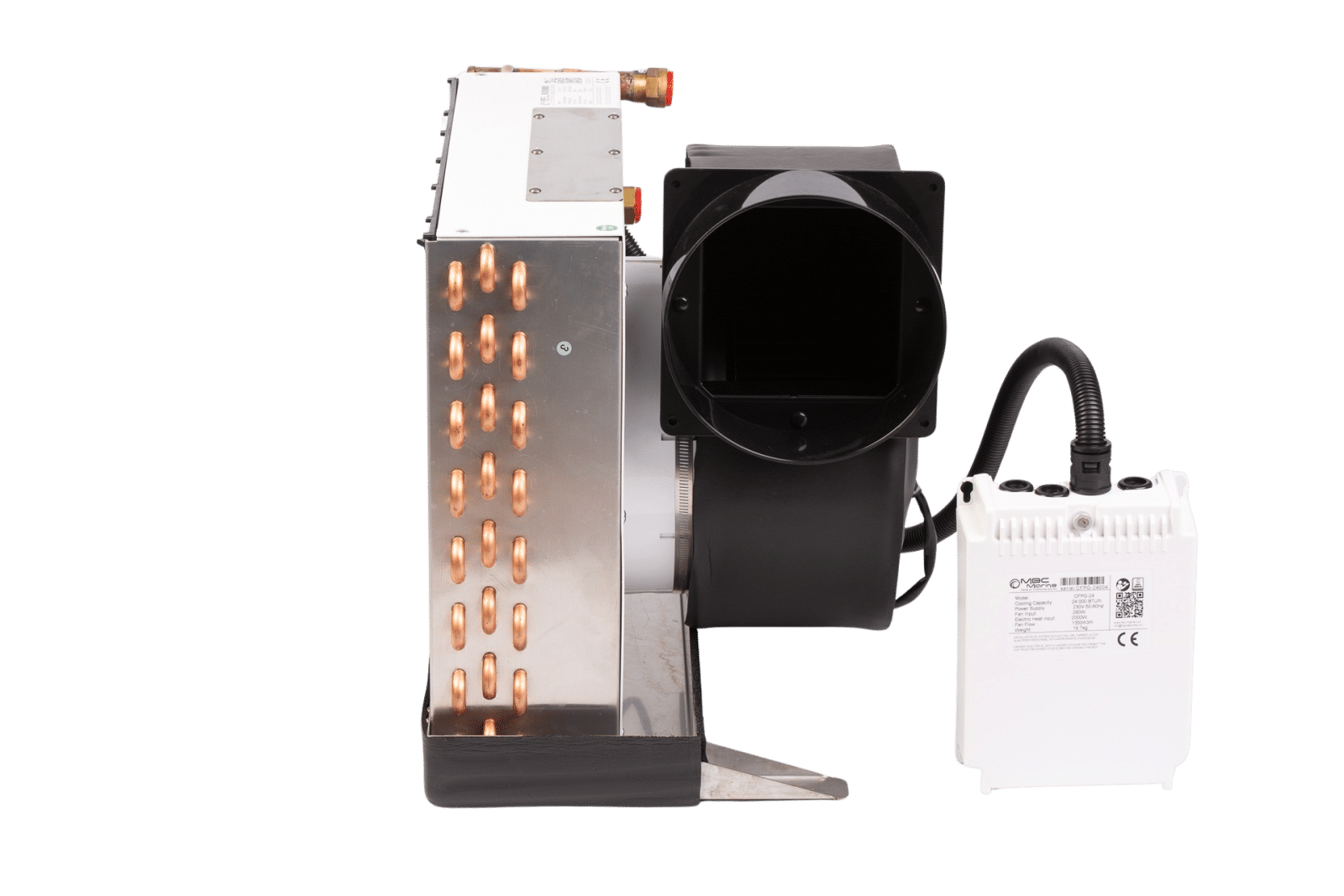

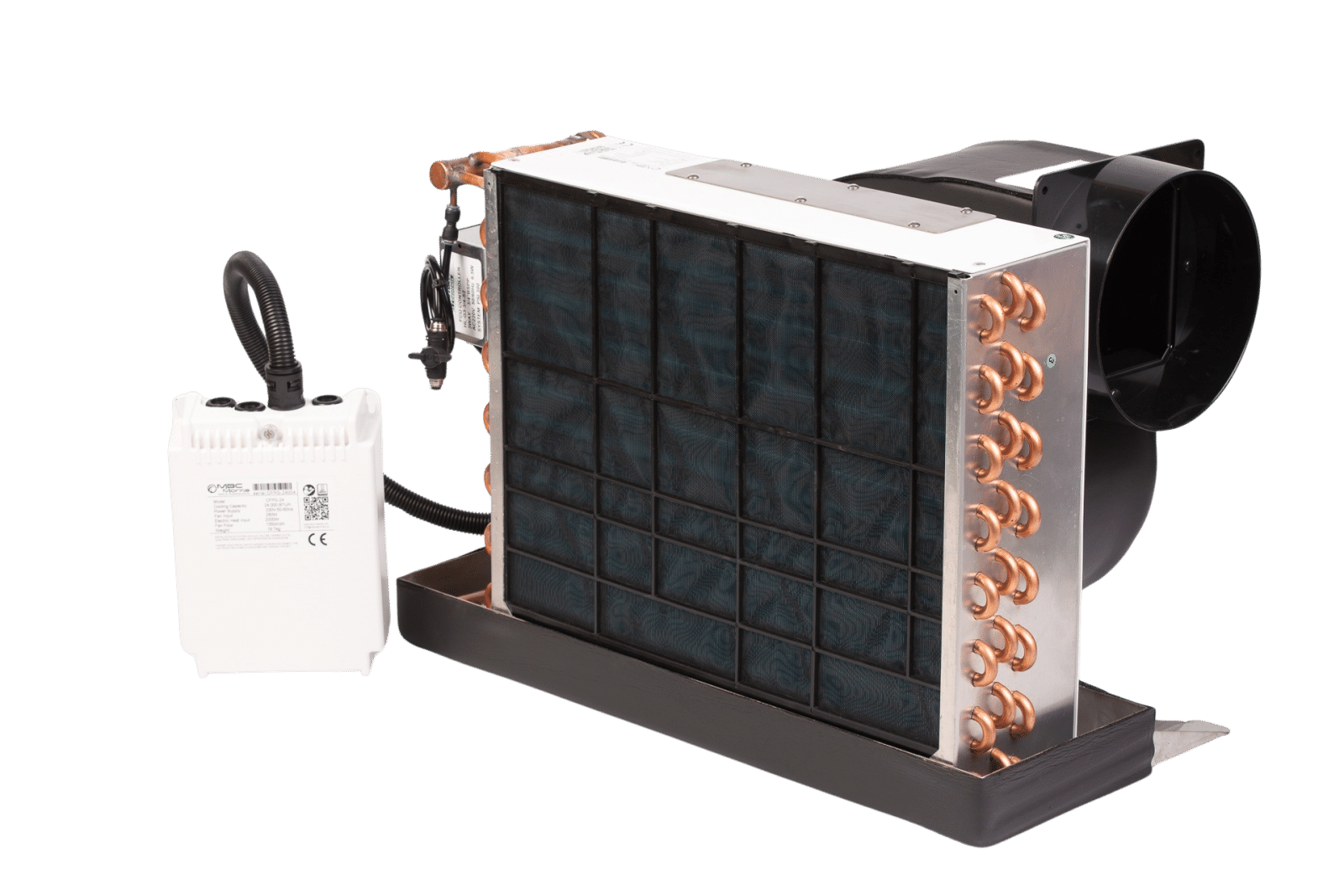

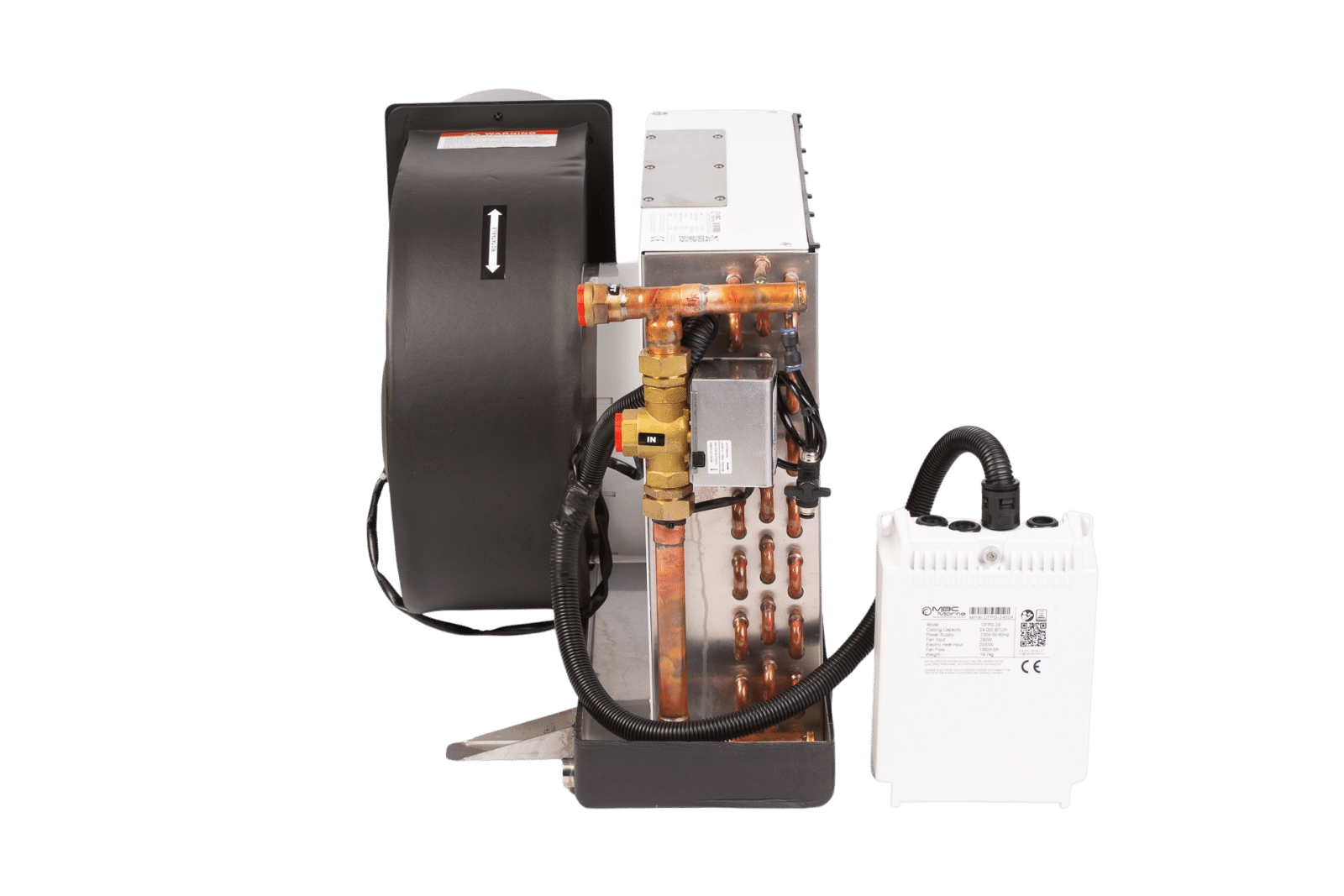

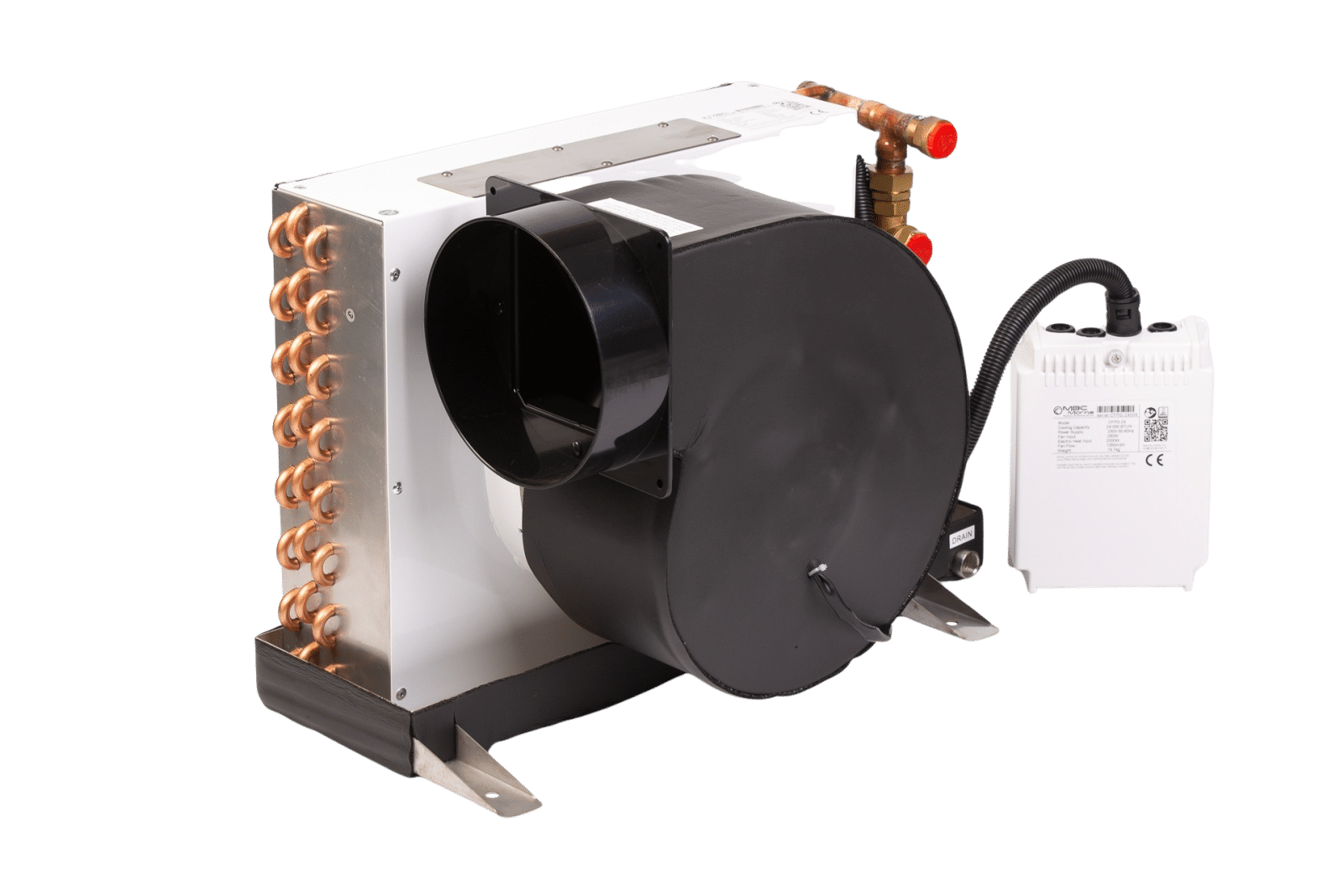

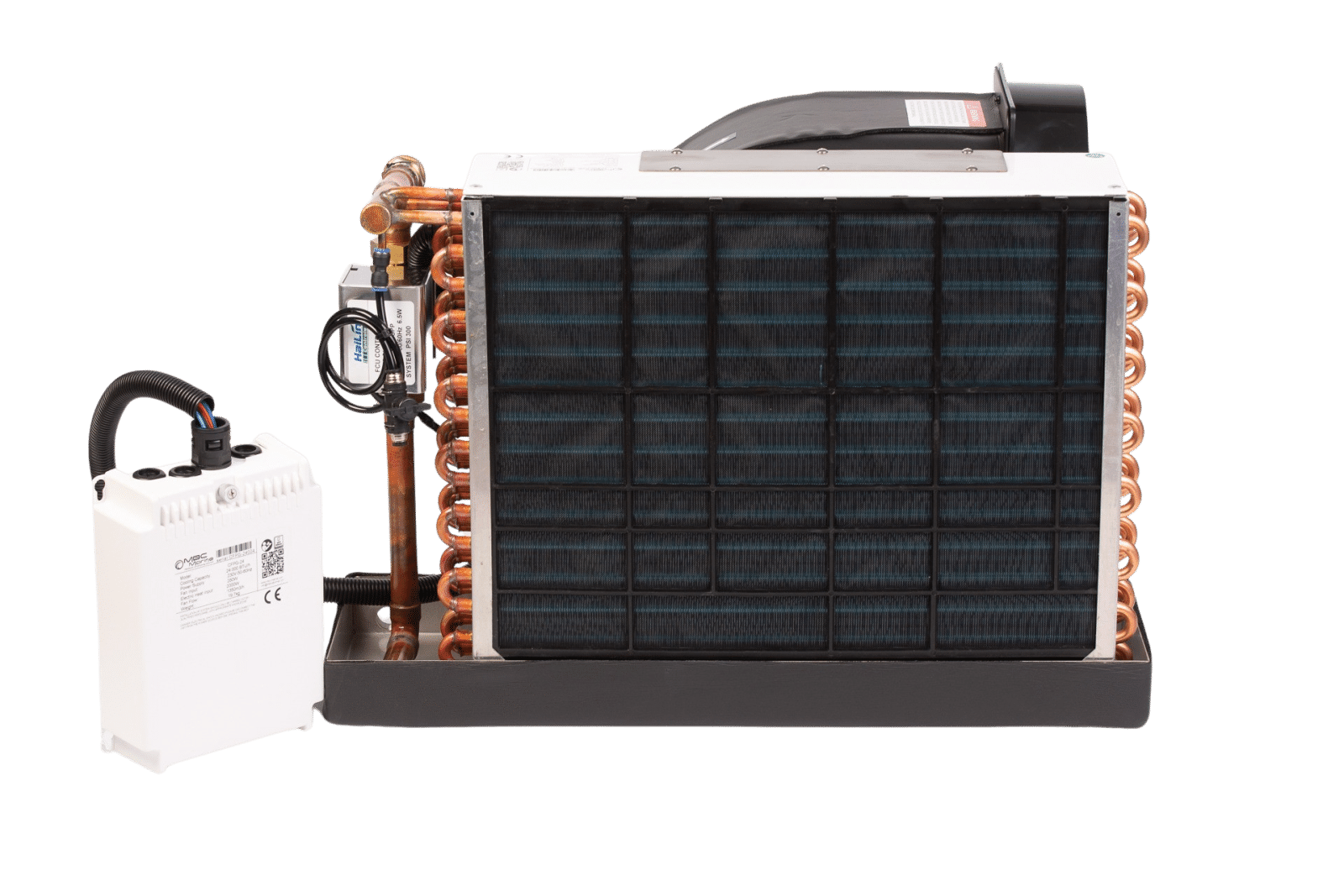

CFPG24 – Vertical Fan Coil Unit for Chiller Systems

Capacity (BTU/h): 24,000 BTU/h

Voltage / Frequency 230 V / 50–60 Hz
Electric Heating 2000 W
Warranty 2 years
Evaporator Material Blue-Fin coating

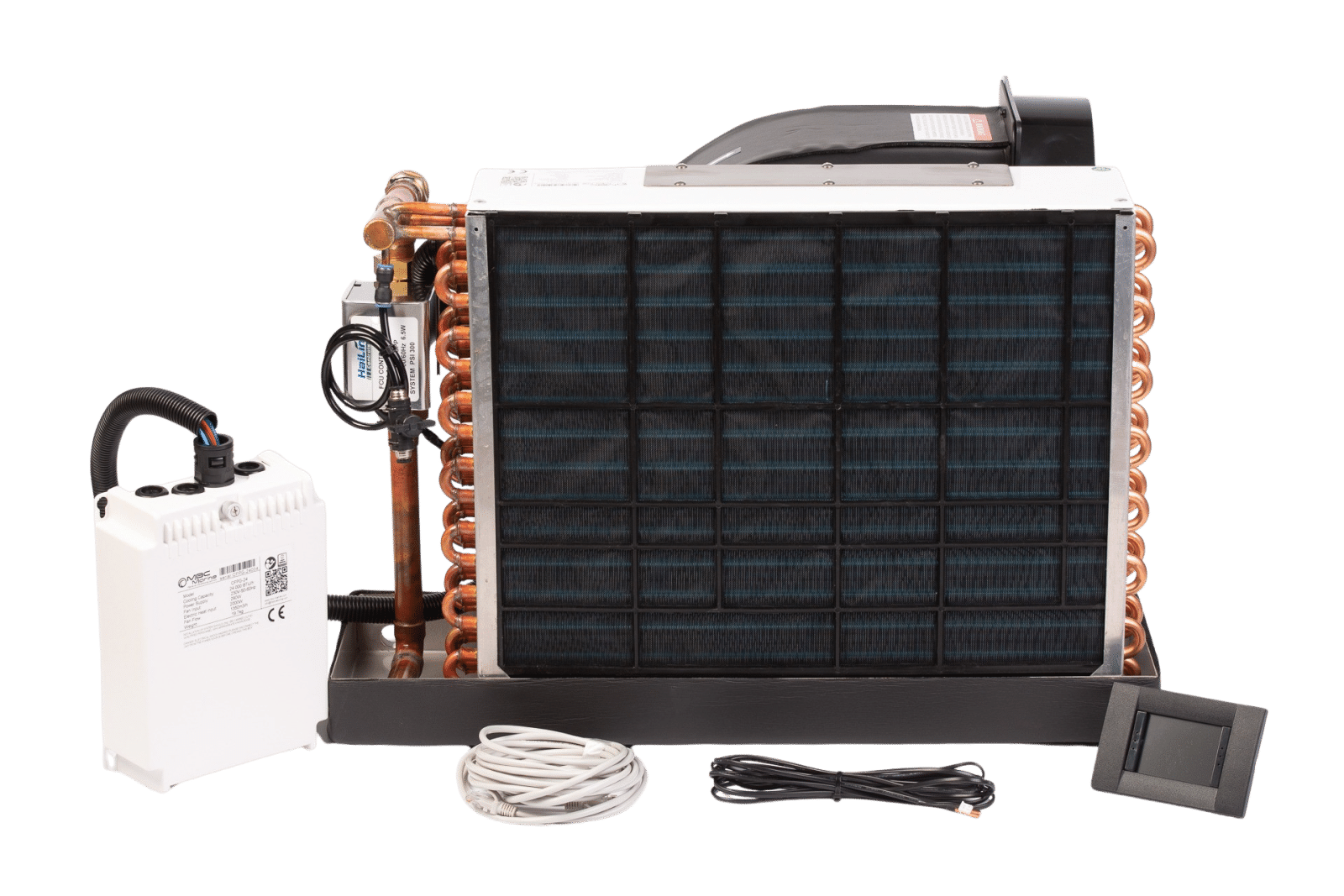

The standard package includes:
LED display, FCU control, 5 m network cable, mounting brackets, insulation tape, electric heating
Unit Dimensions
630 x 430 x 373 mm

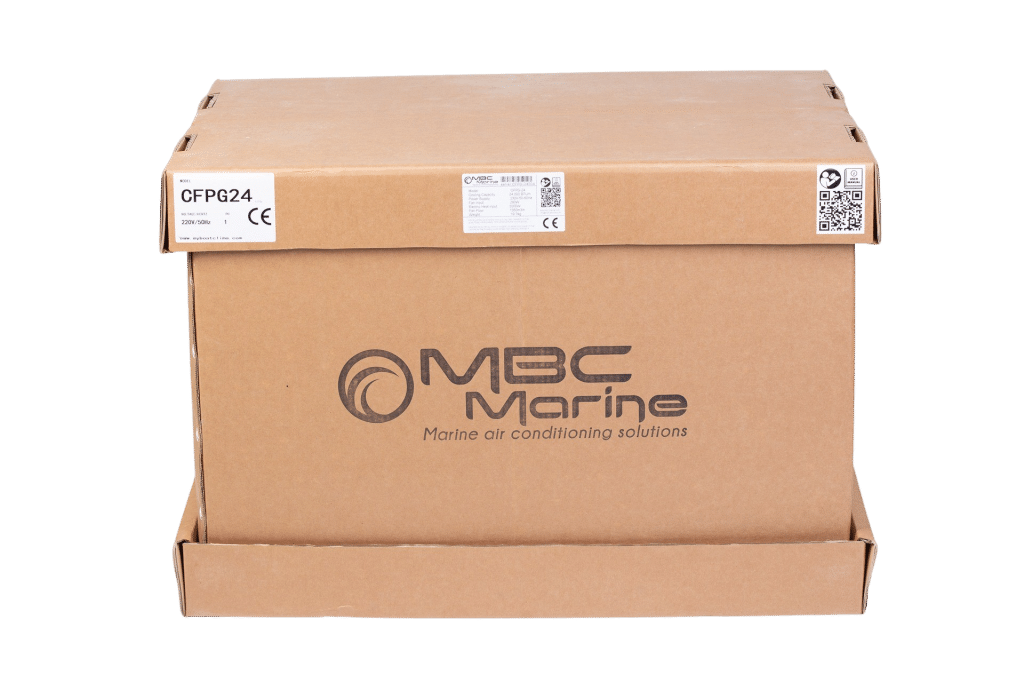

Package Dimensions
710 x 480 x 480 mm
Unit Weight
19.8 kg
Shipping Weight

MBC Marine 24K Fan Coil Unit – Maximum Performance for Spacious Interiors

The MBC Marine 24,000 BTU fan coil unit was designed to deliver powerful, efficient climate control for large cabins, saloons or multi-zone areas on yachts and motor boats. It is engineered for use with chiller systems and comes with a built-in 2000 W electric heater, an FCU controller, a digital display and an integrated flow control valve for precise, energy-efficient operation.

Durable components made of AISI 316 stainless steel and a corrosion-resistant housing ensure long-term reliability, even under the harshest conditions at sea. Despite its performance, the 24K unit remains quiet and compact, preserving comfort and space on board.

The MBC Marine 24K fan coil unit is ideal for new installations or retrofits, providing reliable, year-round climate control for demanding marine applications.

Air Conditioner Specifications

Unit Parameter
CFPG24
Cooling Capacity
BTU/h
24000
Power Supply
230 V/50 Hz
Operating Current
A
1.1 A
Input Power
W
220 W
Drain Connection Size
DN20
Chilled Water Flow
Liters per minute
23.5 liters per minute
Chilled Water Connection Size
3/4"
Width
630
Unit Dimensions
Height
430
Depth
373
Net Weight (kg)
19.8 kg
