HC64VFD – 230 V, Single Phase

Capacity (BTU/h): 64,000 BTU/h

Voltage / Frequency 230 V / 50–60 Hz
Operating Mode Cooling / Heating
Warranty 2 years
The standard package includes:
LED display, 5 m network cable
Unit Dimensions
490 x 340 x 600 mm
Package Dimensions
520 x 360 x 650 mm
Unit Weight
56 kg
Shipping Weight

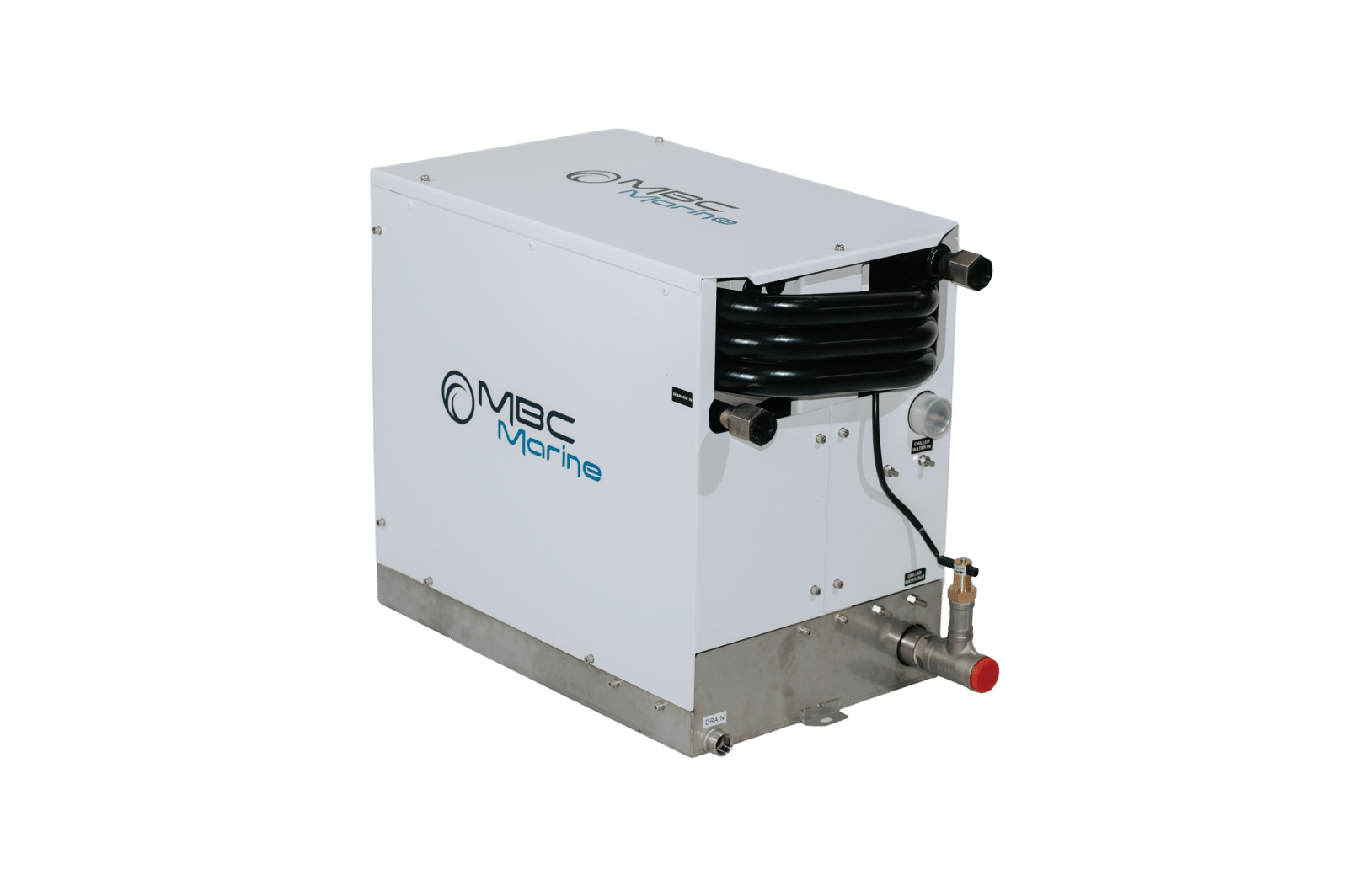

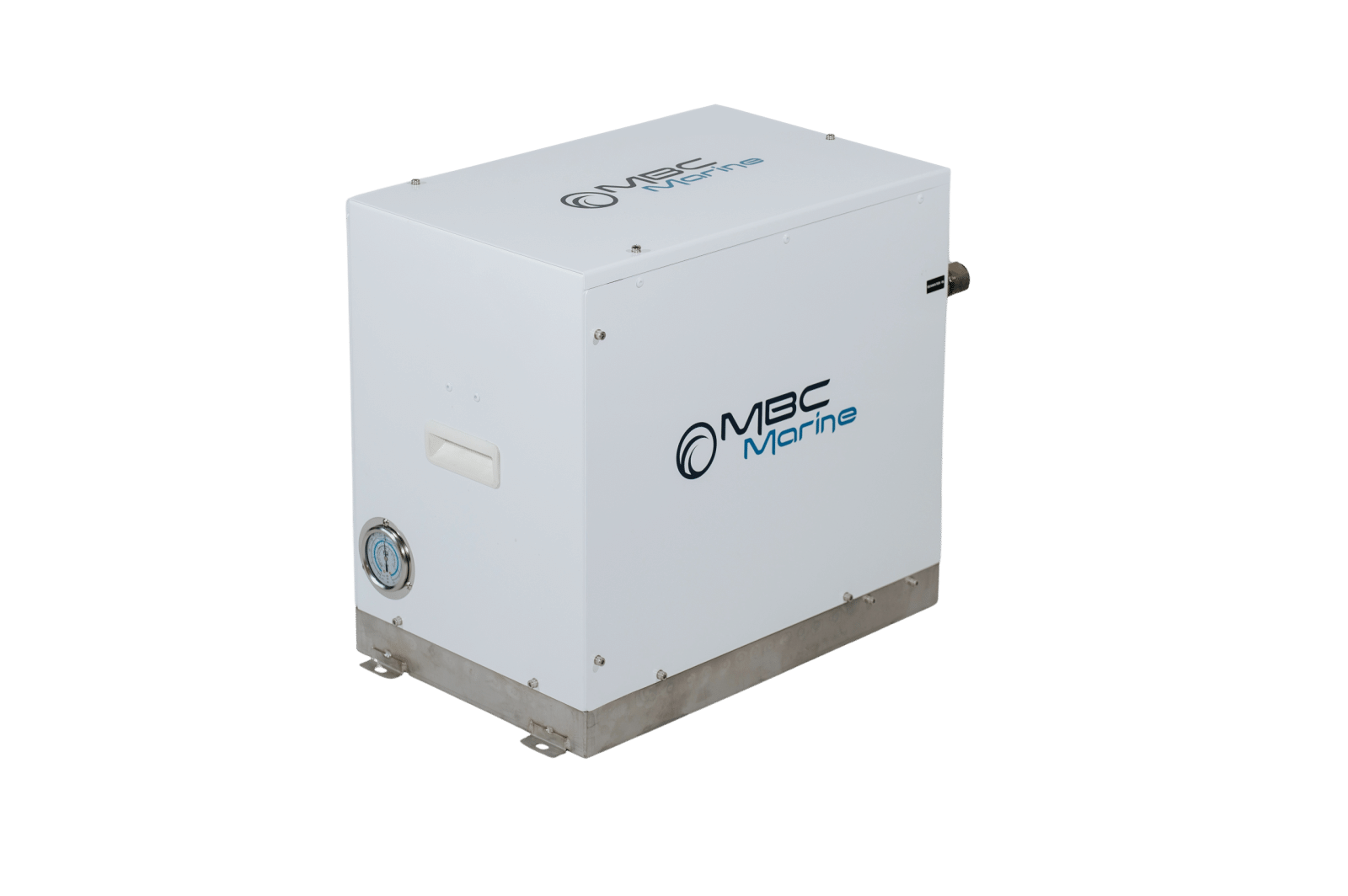

MBC Marine Chiller – Premium Climate Control for Ships (64,000 BTU | 230 V | 1 Phase)

The MBC Marine Chiller system is a powerful, energy-efficient solution for onboard climate control that operates reliably even under the most demanding conditions at sea. The variable-capacity technology continuously adjusts cooling output to current demand, optimizing energy consumption while ensuring consistent comfort.

Featuring titanium heat exchangers for outstanding corrosion resistance and a durable powder-coated housing, the unit delivers long-lasting performance in harsh saltwater environments. Its compact, precharged design ensures fast installation and minimal maintenance.

The integrated smart diagnostic system continuously monitors system parameters and issues real-time alerts to prevent failures and simplify maintenance.

This 64,000 BTU, 230 V, single-phase model is ideal for larger vessels requiring powerful, reliable cooling in a space-saving housing.

Air Conditioner Specifications

Unit Parameter
HC64VFD
Cooling Capacity
BTU/h
64000
Power Supply
230 V/50–60 Hz
Current Draw (A)
Cooling
18 A
Heating
20 A
Seawater Flow
Liters per minute
55 liters per minute
Seawater Connection Size
IN
3/4 inch
Seawater Connection Size
OUT
3/4 inch
Chilled Water Connection Flow Rate
Liters per minute
36 liters per minute
Chilled Water Connection Size
IN
1 inch
Width
340
Unit Dimensions
Height
490
Depth
600
Net Weight (kg)
56 kg
hc36vfd 230v 1ph2 3

Installation and User Manual for All Chiller Units

Proper installation is essential for efficient and safe operation. Please read the following installation and operating instructions carefully before installing the unit.

Chiller_Benutzerhandbuch.pdf
Open file
HC64VFD.pdf
Open file
