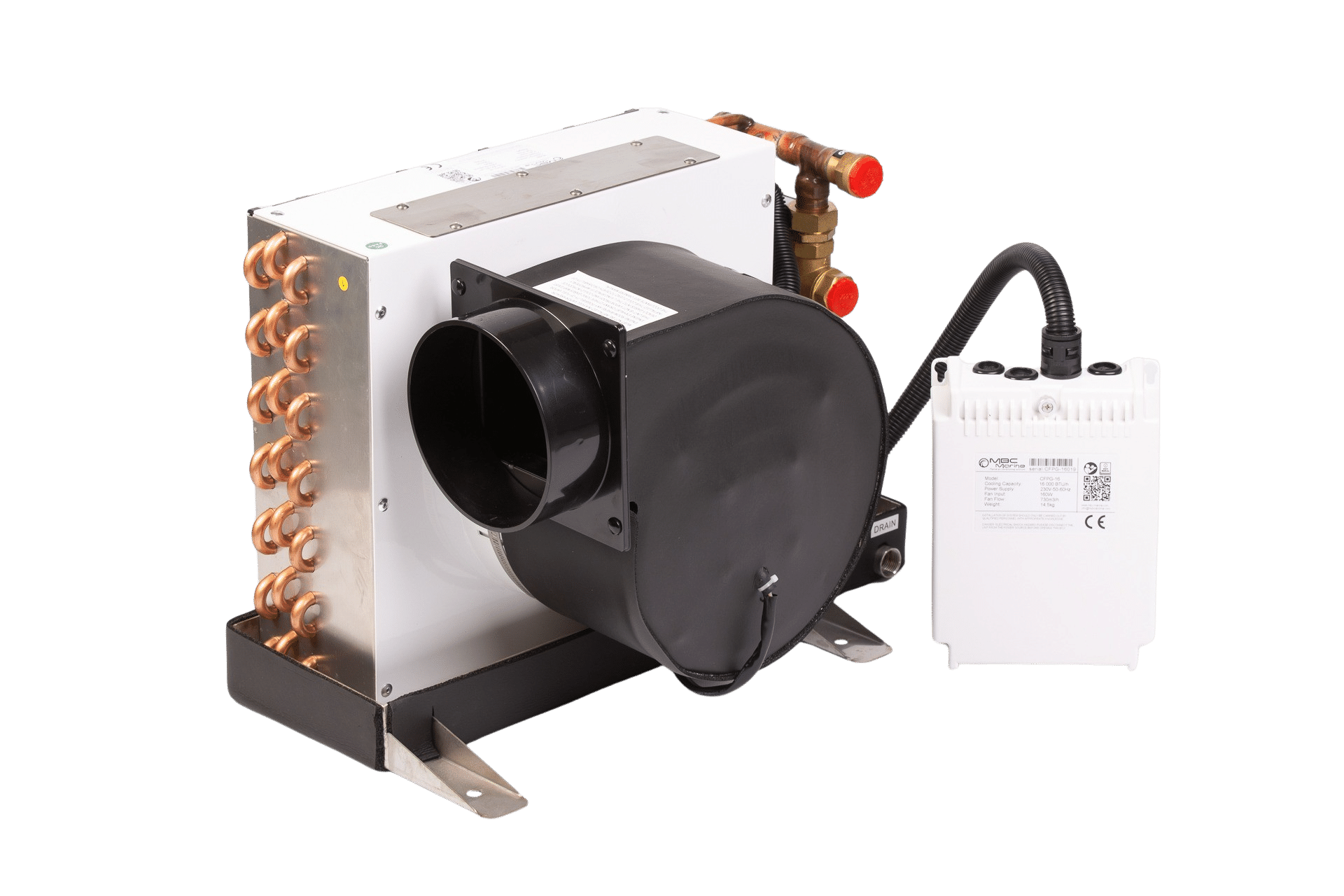

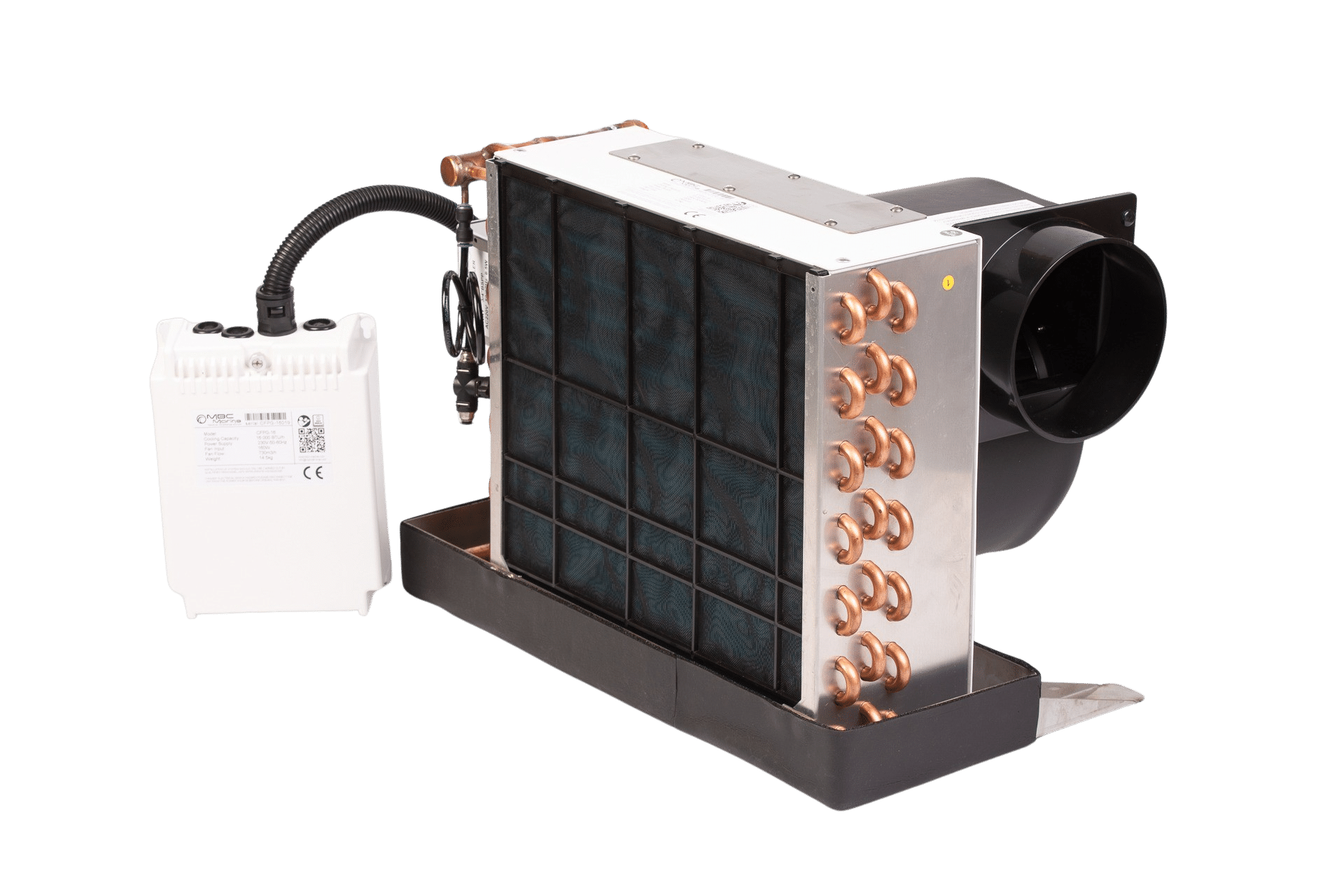

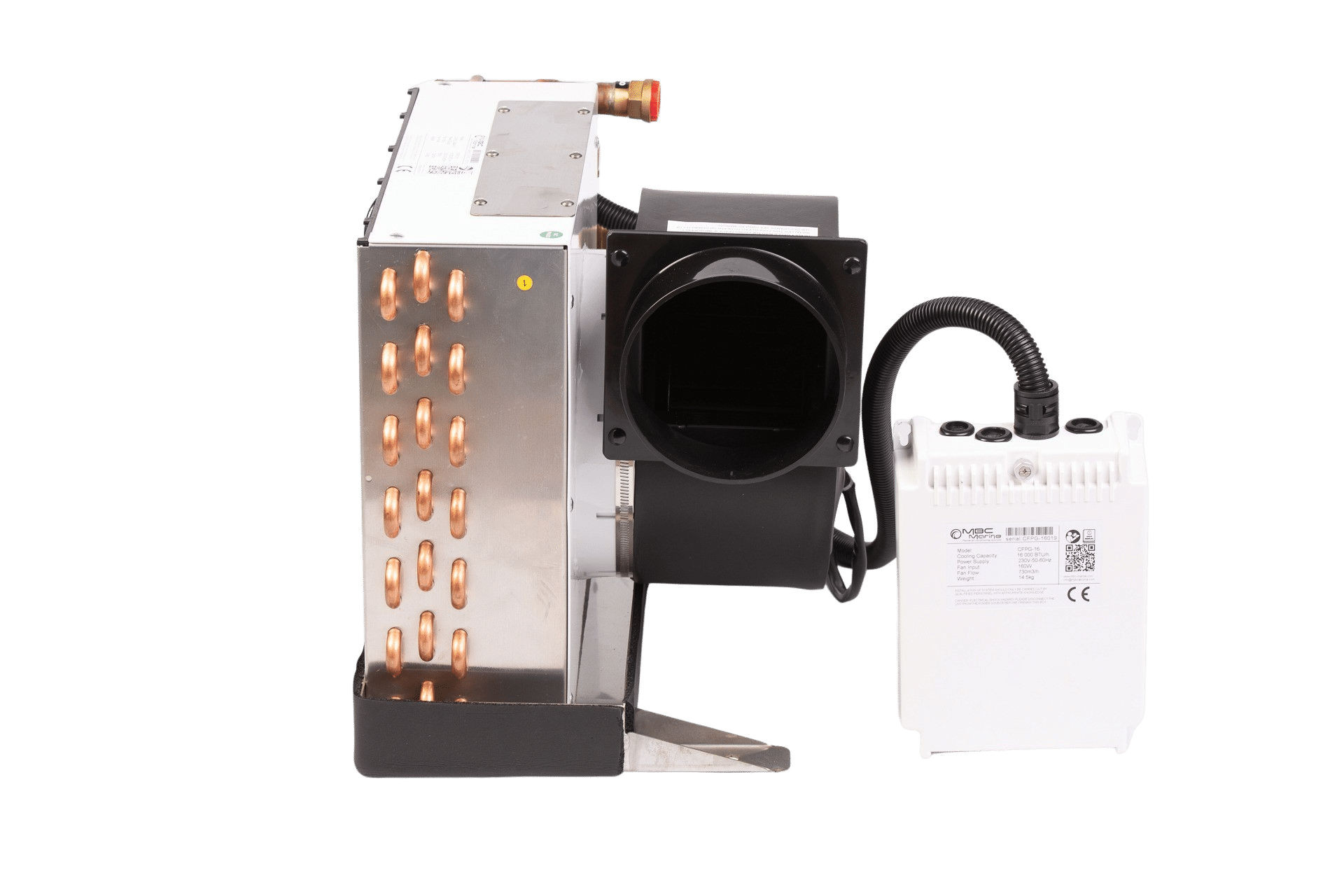

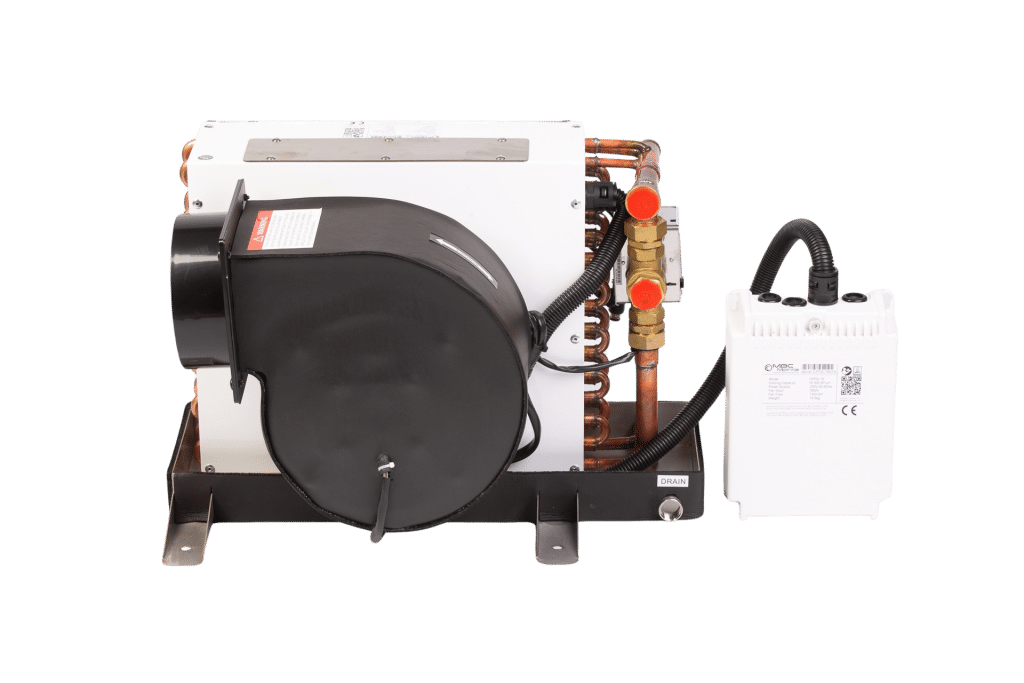

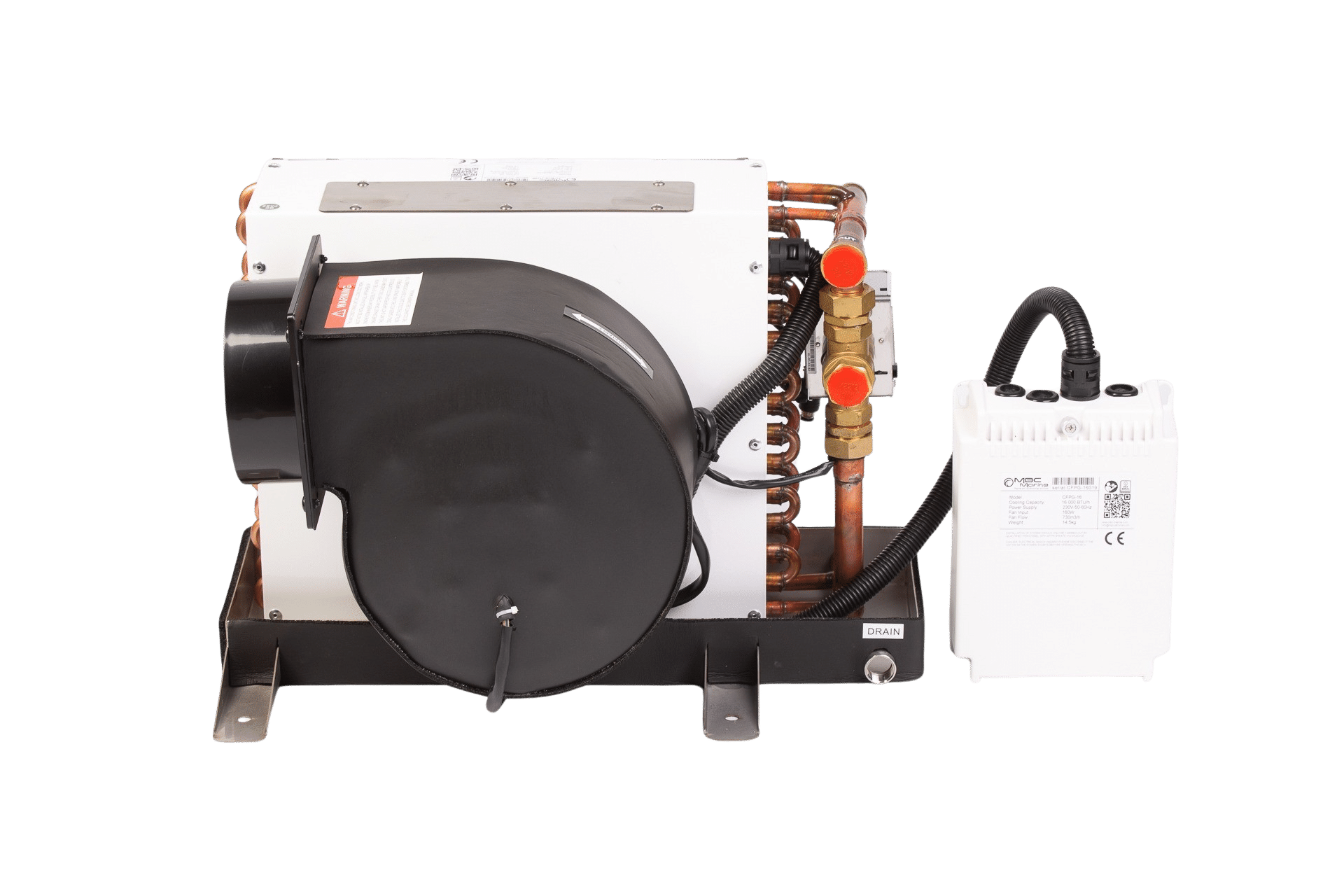

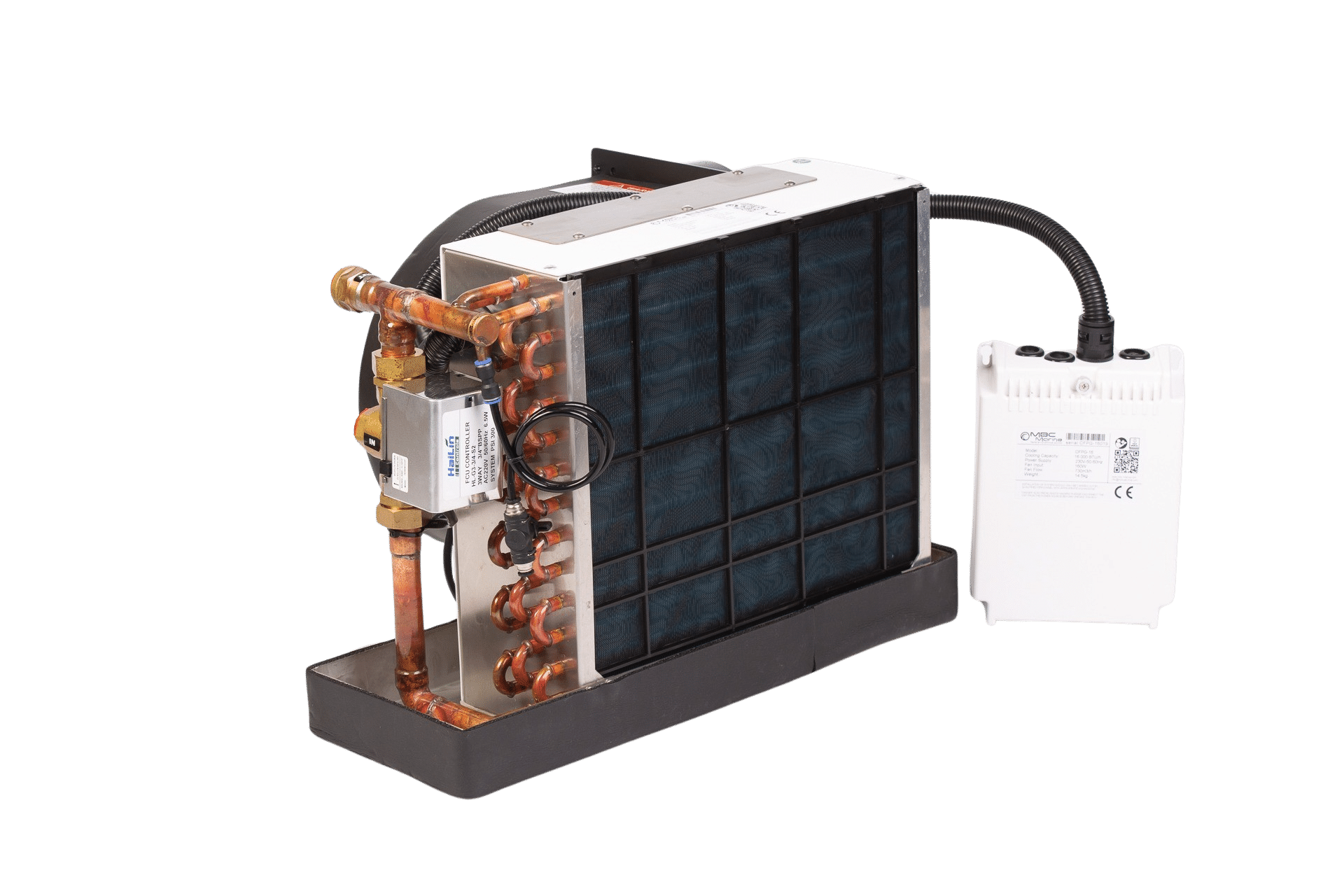

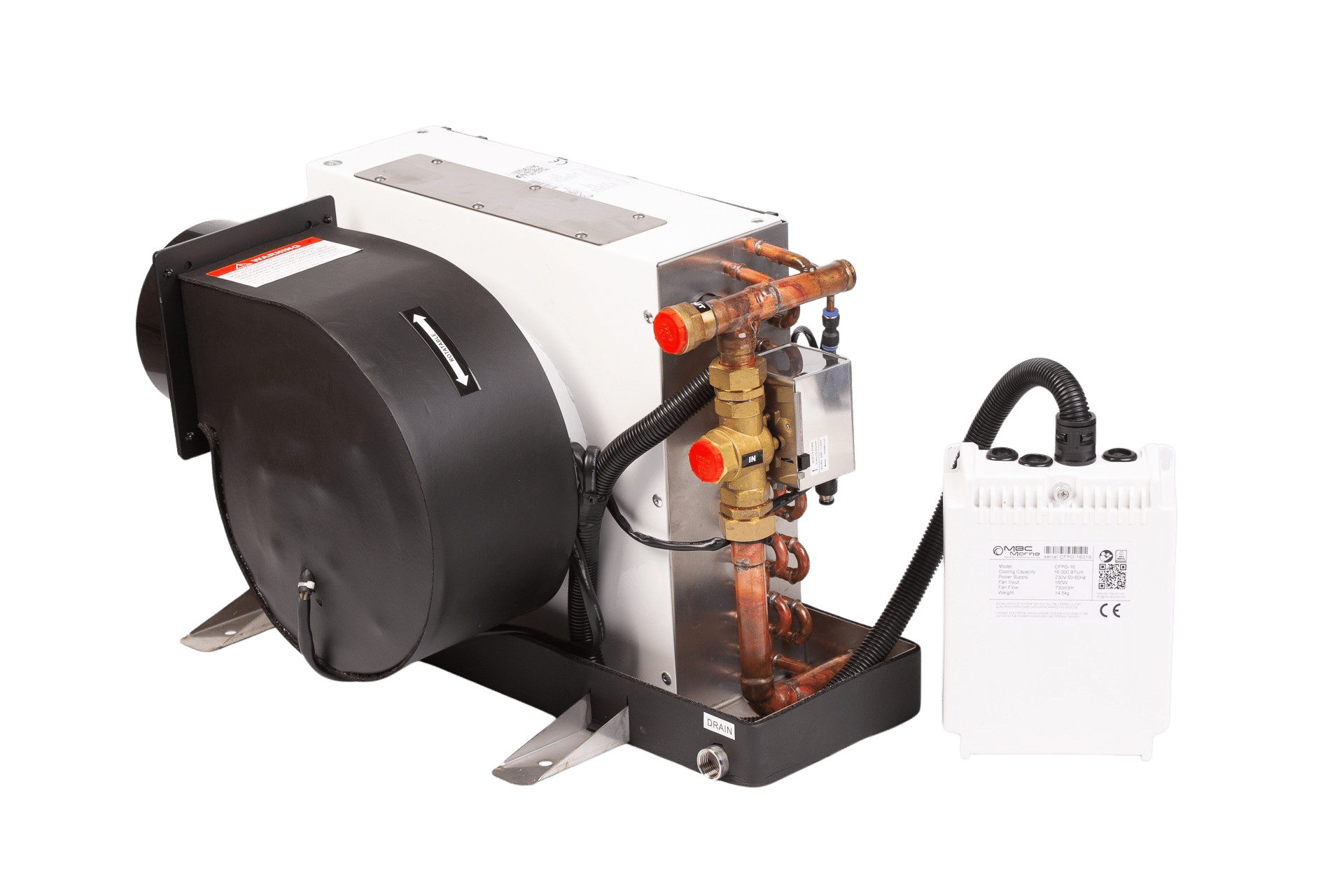

CFPG16 – Vertical Fan Coil Unit for Chiller Systems

Capacity (BTU/h): 16,000 BTU/h

Voltage / Frequency 230 V / 50–60 Hz
Electric Heating 1000 W
Warranty 2 years
Evaporator Material Blue-Fin coating

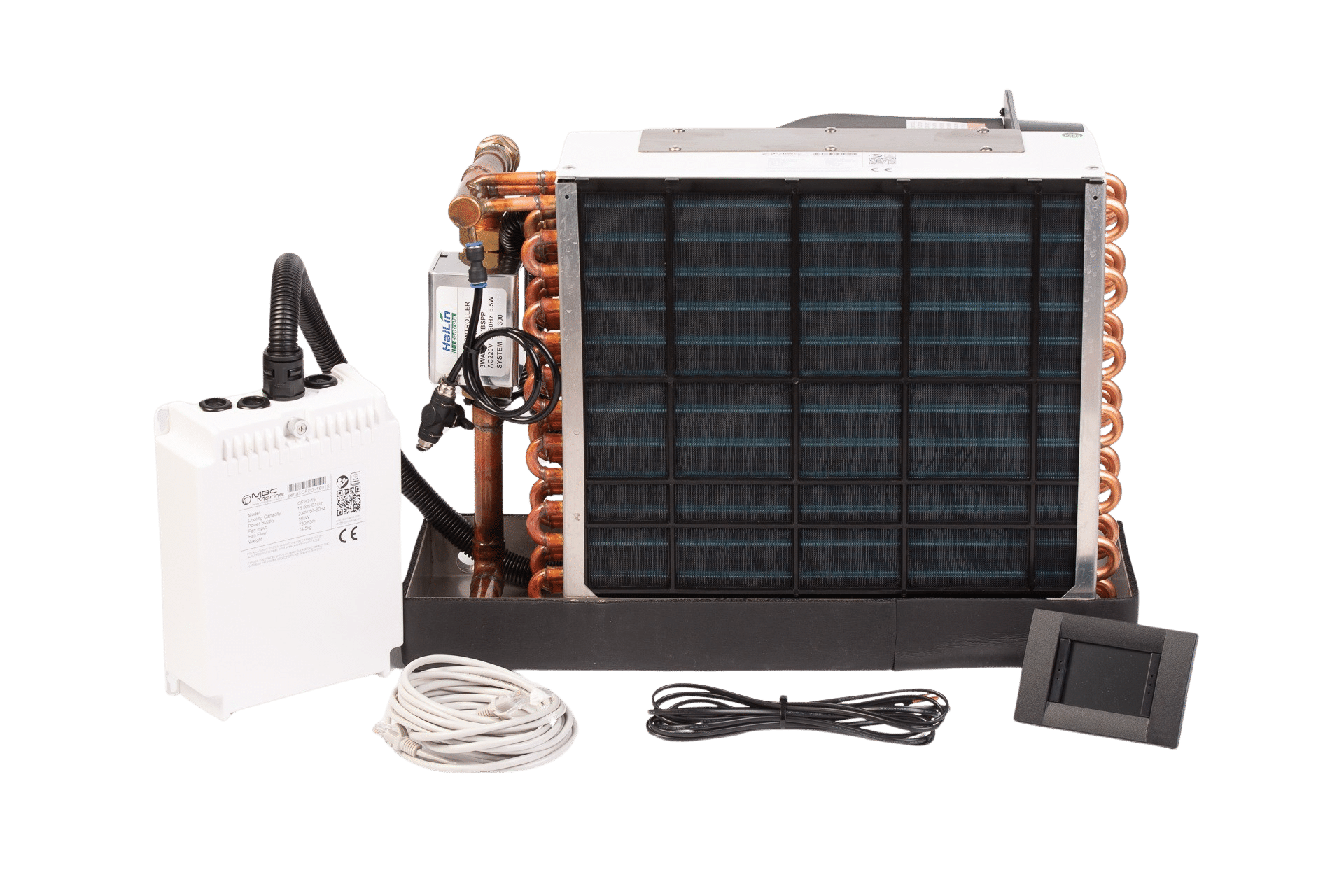

The standard package includes:
LED display, FCU control, 5 m network cable, mounting brackets, insulation tape, electric heating
Unit Dimensions
530 x 370 x 330 mm
Package Dimensions
650 x 400 x 460 mm
Unit Weight
14.9 kg
Shipping Weight
17.1 kg

MBC Marine 16K Fan Coil Unit – Powerful Climate Control for Larger Cabins

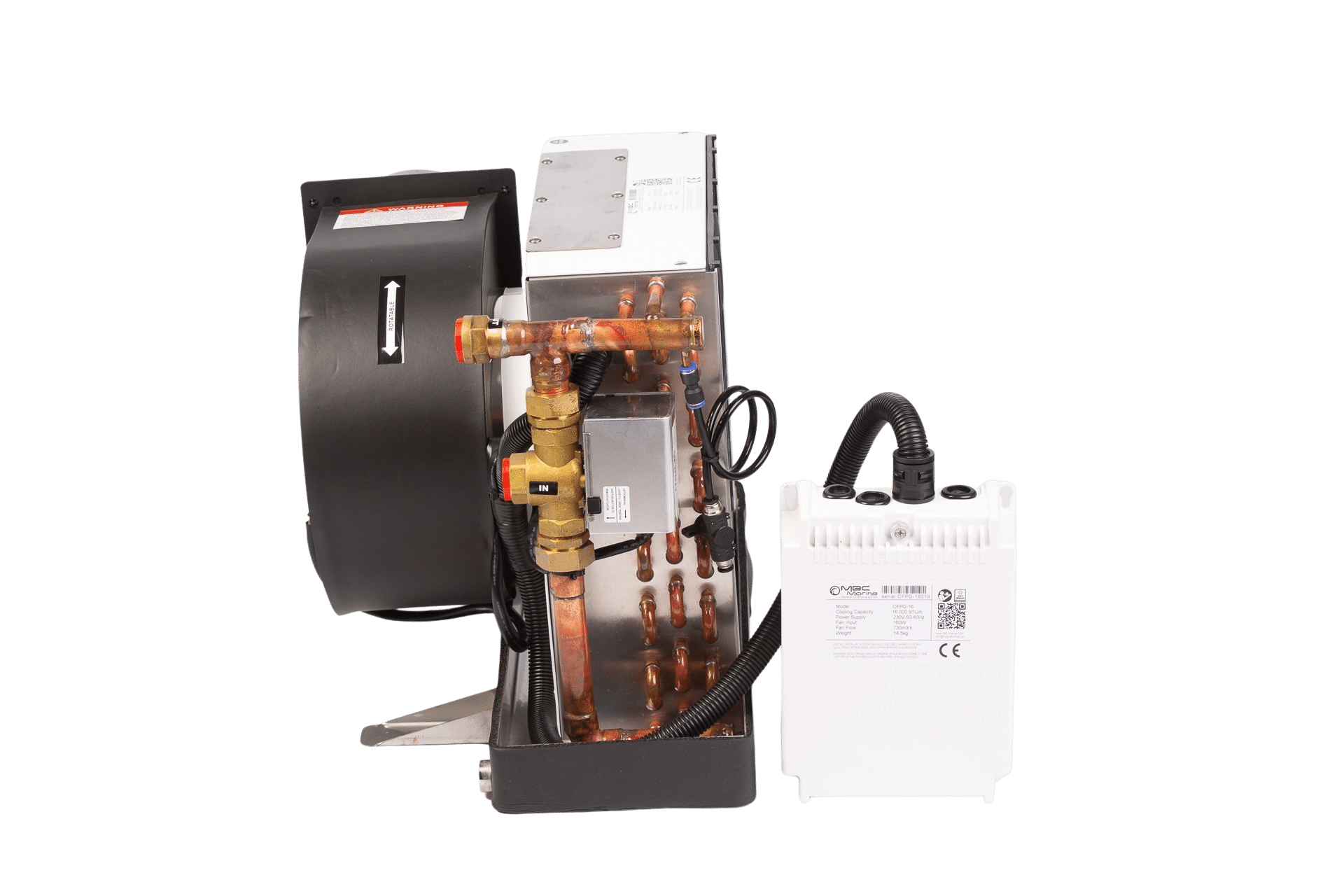

The MBC Marine 16,000 BTU fan coil unit delivers efficient, low-noise cooling and heating for larger cabins or common areas on yachts, catamarans and motor boats. Designed for marine chiller systems, it comes with a built-in 1000 W electric heater, an FCU controller, a digital display and an integrated flow control valve, ensuring precise temperature control and energy efficiency.

The AISI 316 stainless steel condensate tray and corrosion-resistant housing provide lasting protection in harsh marine environments. With its compact design and low operating noise, the 16K unit delivers reliable performance without compromising comfort on board.

The MBC Marine 16K fan coil unit is suitable for both new installations and retrofit projects, ensuring stable climate control at sea throughout the year.

Air Conditioner Specifications

Unit Parameter
CFP16
Cooling Capacity
BTU/h
16000
Power Supply
230 V/50–60 Hz
Operating Current
A
0.9 A
Input Power
W
200 W
Drain Connection Size
DN20
Chilled Water Flow
Liters per minute
16.5 liters per minute
Chilled Water Connection Size
3/4 inch
Width
530
Unit Dimensions
Height
370
Depth
330
Net Weight (kg)
14.9 kg
