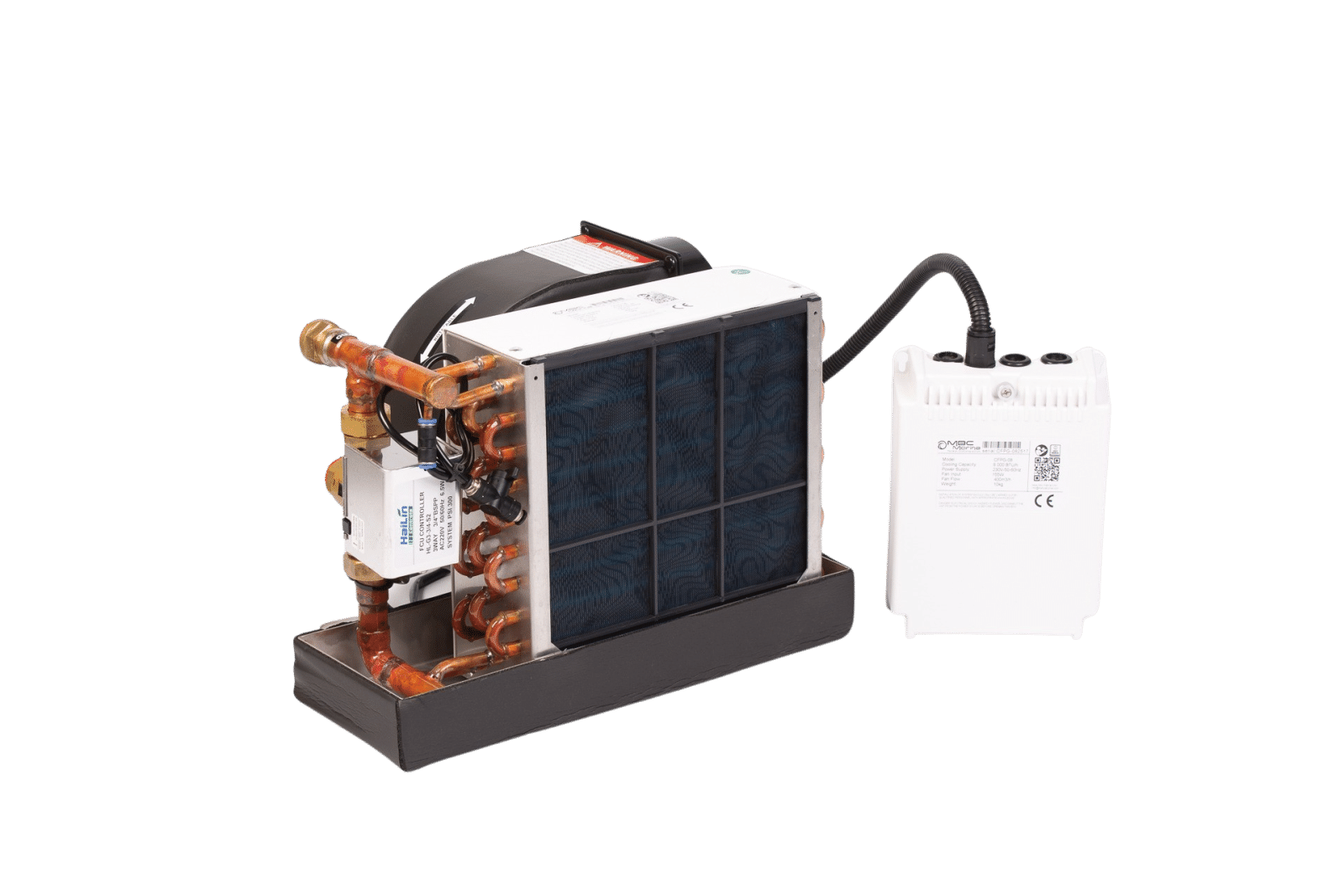

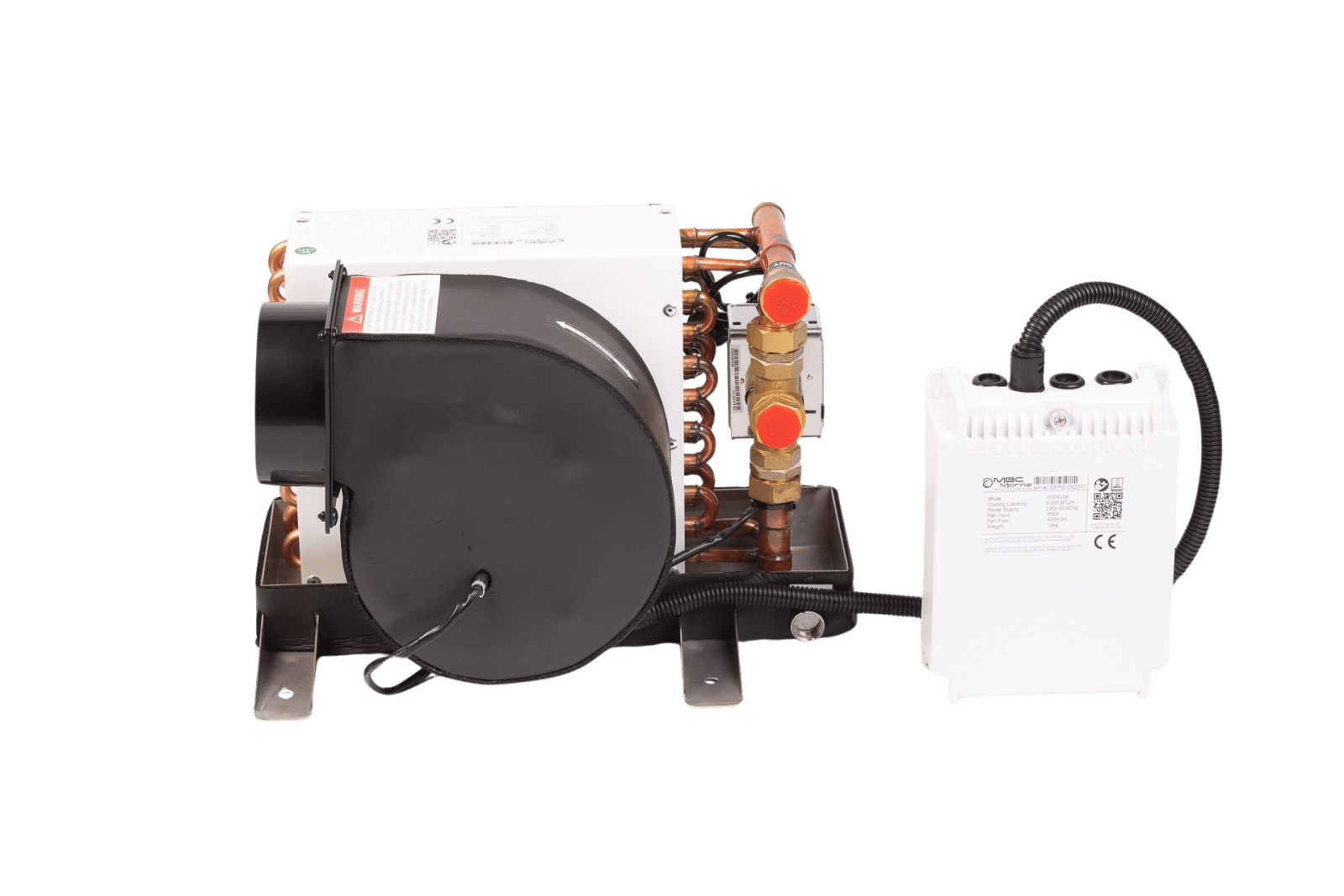

CFPG08 – Vertical Fan Coil Unit for Chiller Systems

Capacity (BTU/h): 8,000 BTU/h

Voltage / Frequency 230 V / 50–60 Hz
Electric Heating No
Warranty 2 years
Evaporator Material Blue-Fin coating

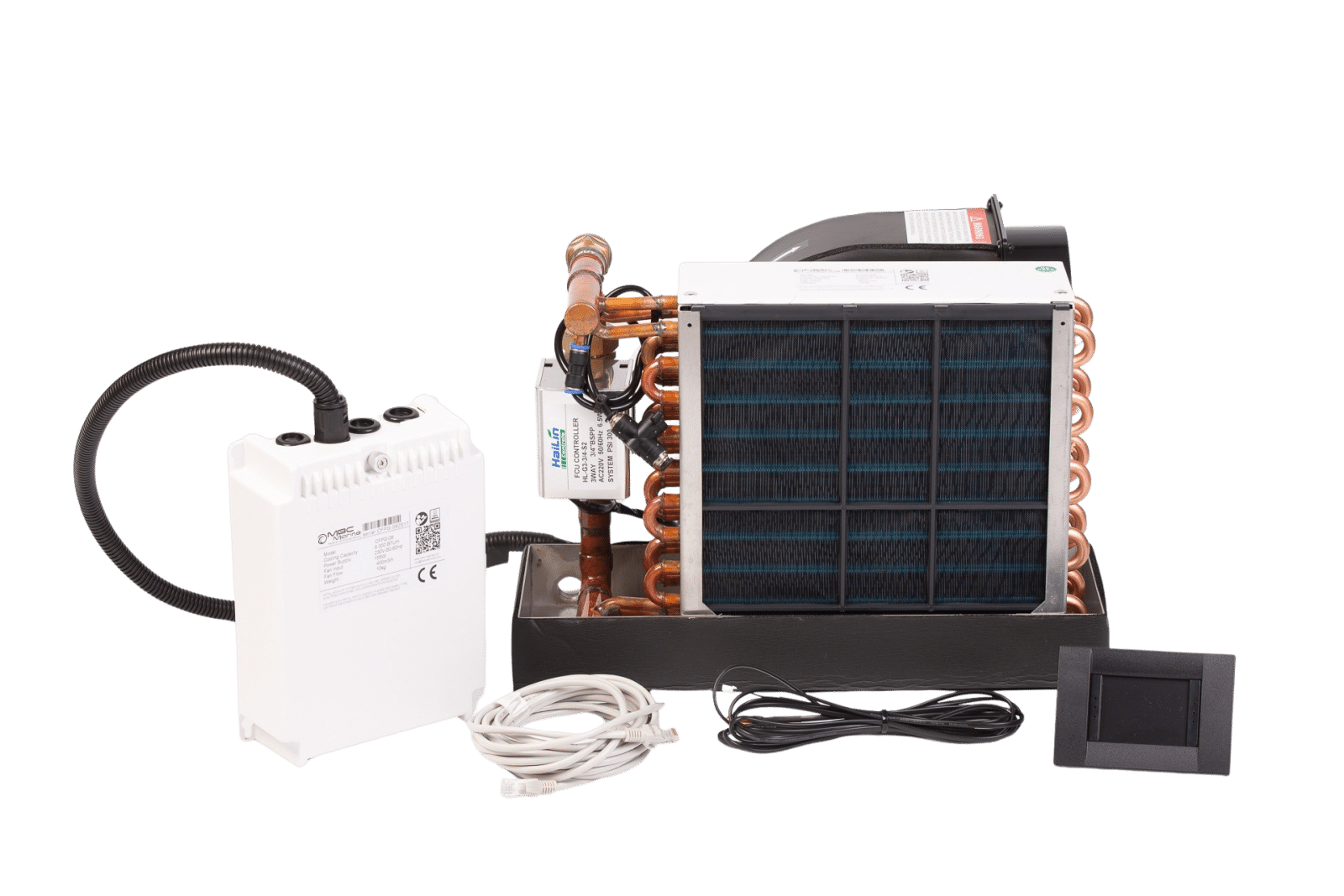

The standard package includes:
LED display, FCU control, 5 m network cable, mounting brackets, insulation tape,
Unit Dimensions
420 x 290 x 261 mm
Package Dimensions
520 x 360 x 380 mm
Unit Weight
9.9 kg
Shipping Weight
11.8 kg

MBC Marine Fan Coil Units for Chiller Systems – Compact Performance and Comfort

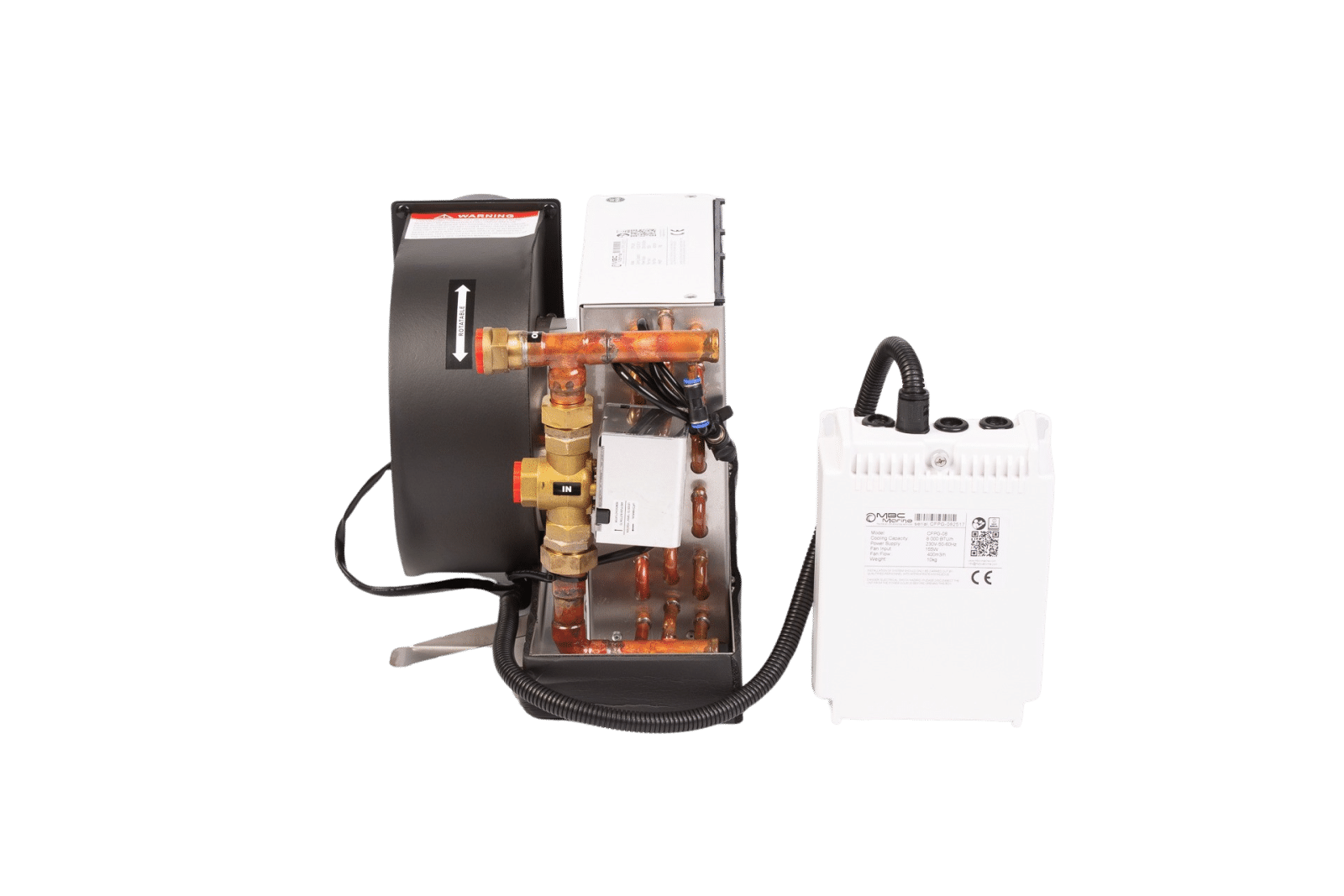

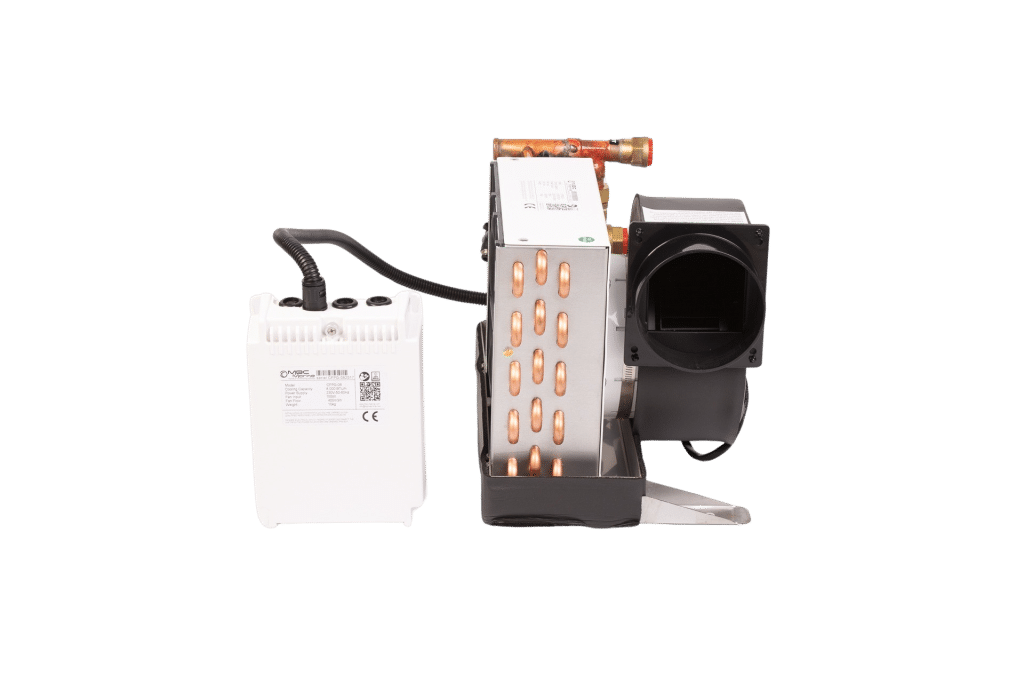

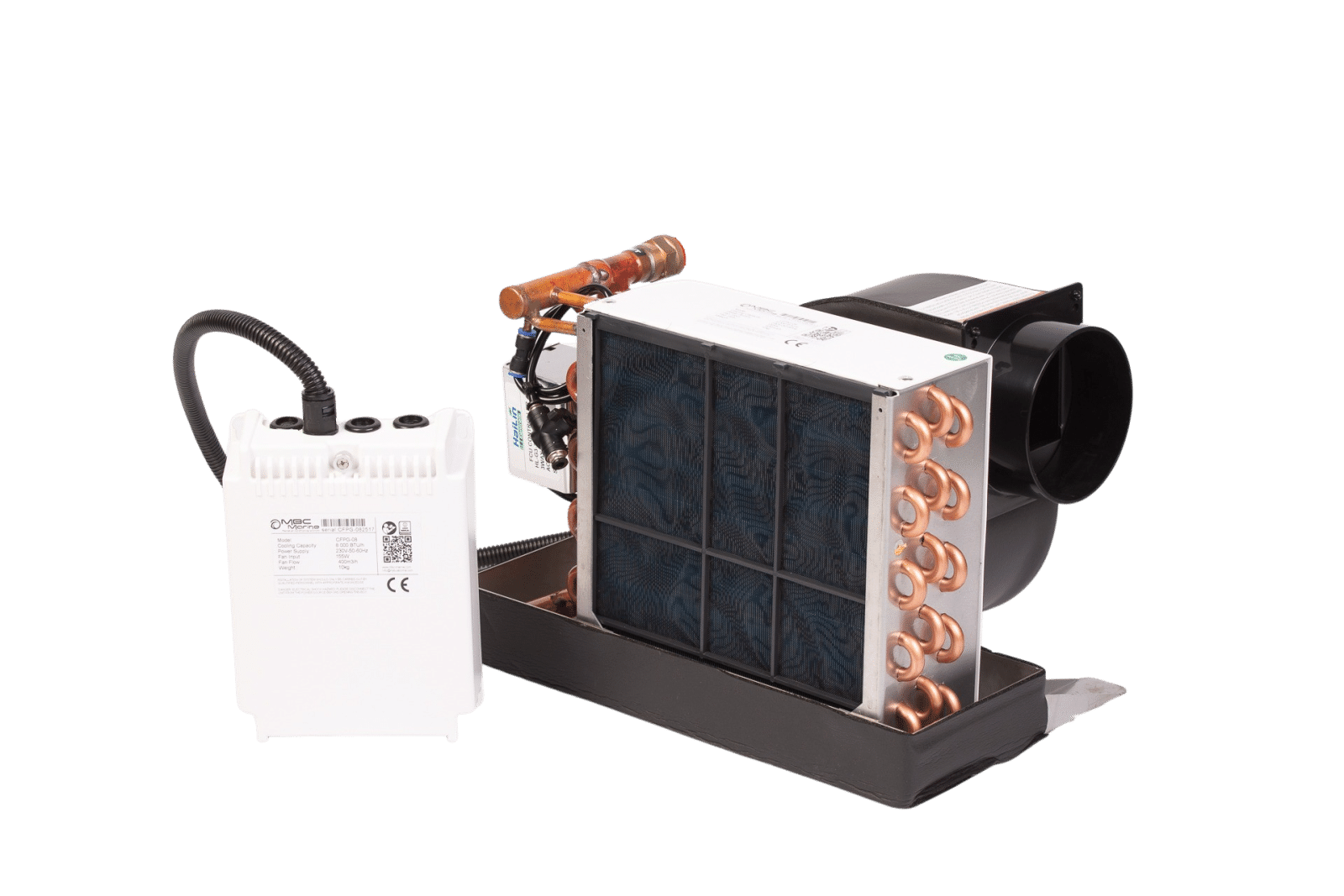

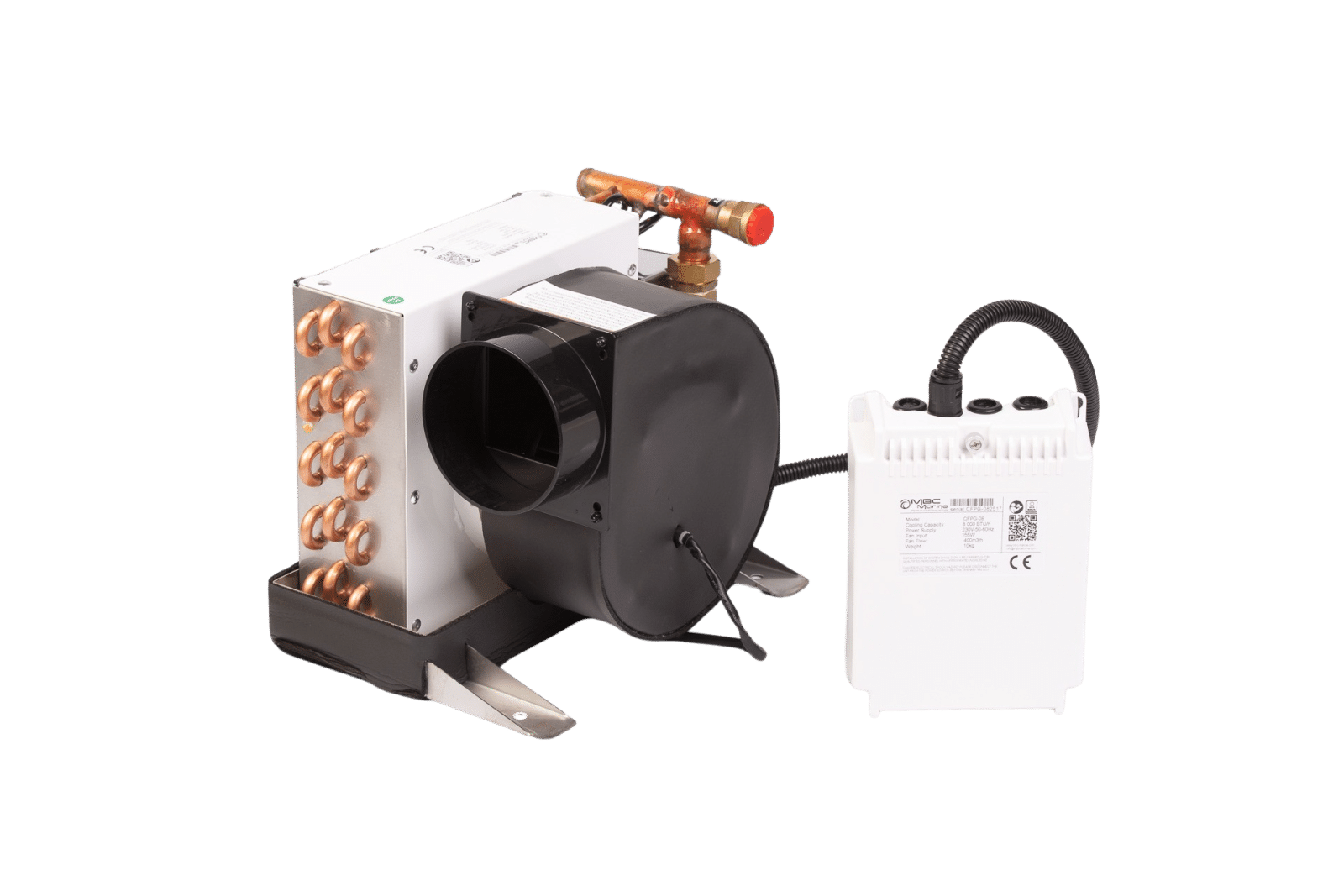

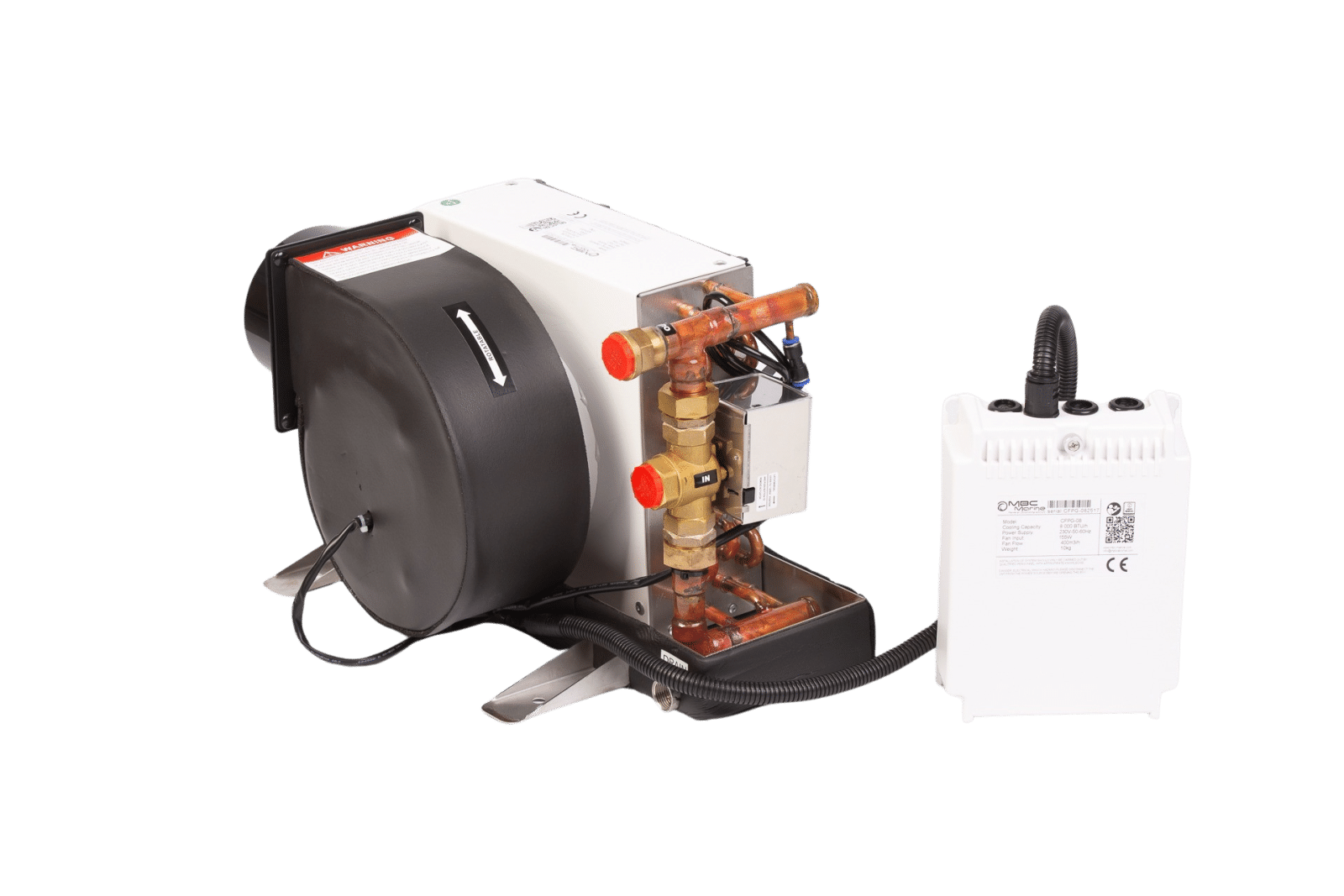

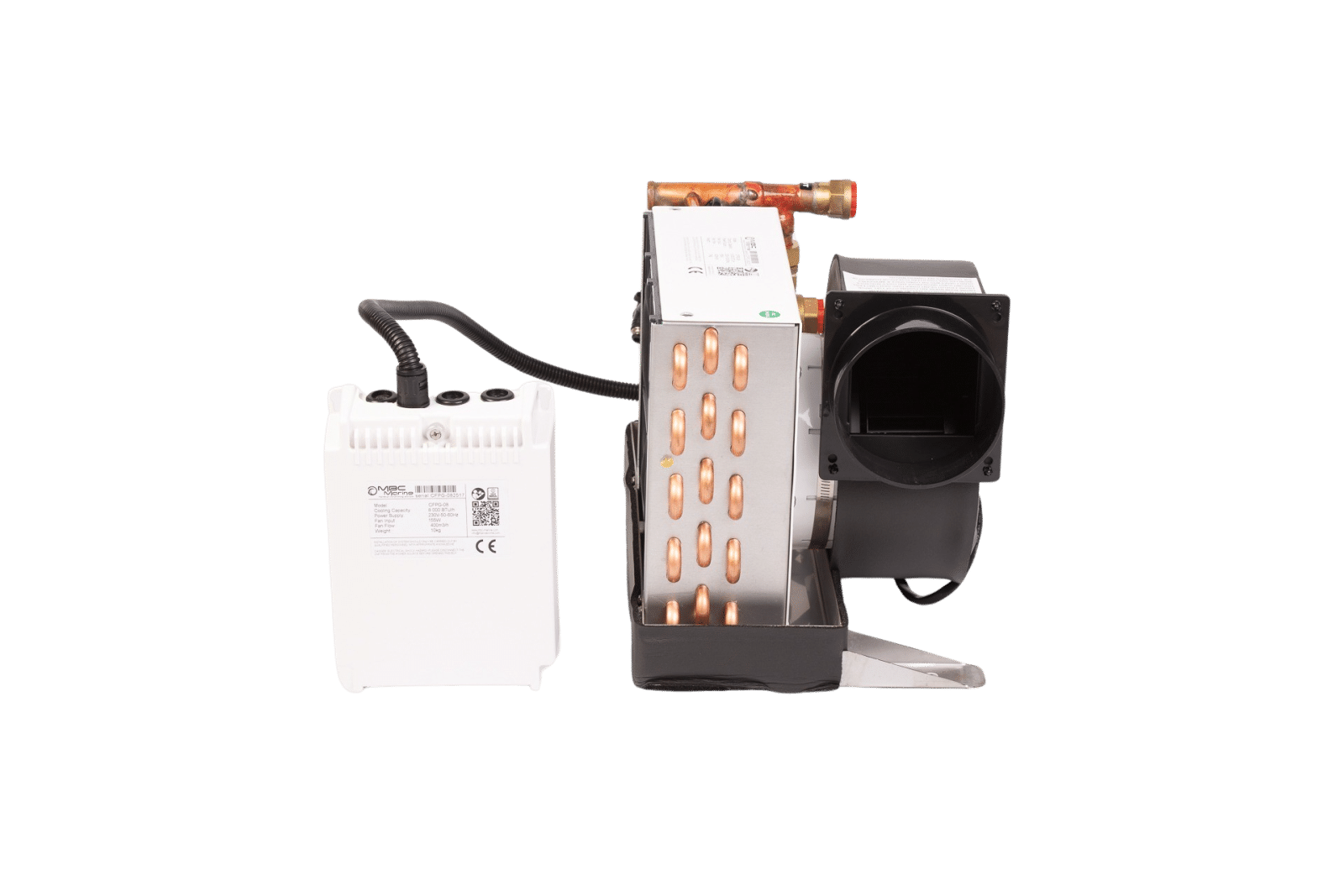

Enjoy reliable, whisper-quiet climate control on board with MBC Marine fan coil units, designed specifically for chiller-based air conditioning on boats, yachts and catamarans. Each unit is equipped with an integrated FCU controller, a digital display and a built-in flow control valve to ensure precise performance and energy-efficient operation.

These fan coil units feature AISI 316 stainless steel condensate trays and a corrosion-resistant housing, built to withstand demanding marine environments. Thanks to their compact design and extremely quiet operation, they are ideal for use in cabins and saloons, where space and comfort play an important role.

The MBC Marine fan coil units are available in five output levels from 8,000 to 24,000 BTU/h and offer flexible installation options as well as seamless compatibility with both new builds and refit projects — for year-round comfort, wherever your journey takes you.

Air Conditioner Specifications

Unit Parameter
CFP08
Cooling Capacity
BTU/h
8000
Airflow
m³/h
350
Power Supply
230 V/50–60 Hz
Operating Current
A
0.4 A
Input Power
W
100 W
Drain Connection Size
DN20
Chilled Water Flow
Liters per minute
6.5 liters per minute
Chilled Water Connection Size
3/4 inch
Width
580
Unit Dimensions
Height
195
Depth
475
Net Weight (kg)
14 kg
